1. Essential Framework and Product Composition
1.1 The Nanoscale Design of Aerogels

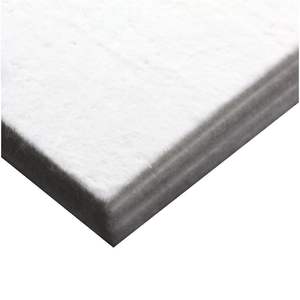

(Aerogel Blanket)
Aerogel blankets are advanced thermal insulation materials built on a special nanostructured structure, where a solid silica or polymer network extends an ultra-high porosity volume– typically surpassing 90% air.
This framework stems from the sol-gel process, in which a fluid forerunner (often tetramethyl orthosilicate or TMOS) undertakes hydrolysis and polycondensation to form a wet gel, adhered to by supercritical or ambient pressure drying out to remove the liquid without collapsing the fragile porous network.
The resulting aerogel includes interconnected nanoparticles (3– 5 nm in size) developing pores on the range of 10– 50 nm, small enough to reduce air molecule activity and thus reduce conductive and convective warmth transfer.
This phenomenon, known as Knudsen diffusion, considerably minimizes the effective thermal conductivity of the material, frequently to values between 0.012 and 0.018 W/(m · K) at space temperature– amongst the lowest of any type of strong insulator.
Regardless of their low thickness (as reduced as 0.003 g/cm TWO), pure aerogels are inherently fragile, requiring reinforcement for sensible use in adaptable blanket kind.
1.2 Support and Compound Design
To get rid of frailty, aerogel powders or pillars are mechanically incorporated right into coarse substratums such as glass fiber, polyester, or aramid felts, developing a composite “covering” that maintains remarkable insulation while acquiring mechanical robustness.
The strengthening matrix provides tensile toughness, flexibility, and taking care of longevity, allowing the material to be cut, curved, and mounted in complex geometries without considerable efficiency loss.
Fiber web content commonly ranges from 5% to 20% by weight, thoroughly balanced to decrease thermal linking– where fibers carry out warmth throughout the covering– while making sure structural honesty.
Some progressed designs incorporate hydrophobic surface area treatments (e.g., trimethylsilyl groups) to stop moisture absorption, which can weaken insulation efficiency and advertise microbial growth.
These modifications enable aerogel blankets to keep steady thermal residential properties even in moist environments, increasing their applicability beyond regulated laboratory conditions.
2. Manufacturing Processes and Scalability

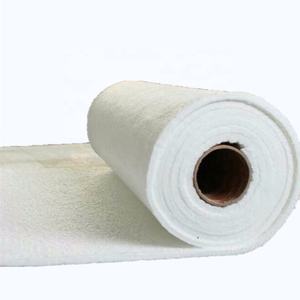

( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Production
The manufacturing of aerogel coverings begins with the development of a damp gel within a fibrous mat, either by impregnating the substrate with a fluid precursor or by co-forming the gel and fiber network all at once.
After gelation, the solvent have to be gotten rid of under problems that stop capillary stress and anxiety from breaking down the nanopores; historically, this required supercritical carbon monoxide â‚‚ drying out, an expensive and energy-intensive procedure.
Current developments have made it possible for ambient stress drying out via surface adjustment and solvent exchange, substantially decreasing production costs and making it possible for continual roll-to-roll manufacturing.
In this scalable procedure, long rolls of fiber mat are continually covered with forerunner remedy, gelled, dried, and surface-treated, enabling high-volume outcome ideal for commercial applications.
This shift has actually been crucial in transitioning aerogel coverings from specific niche laboratory materials to readily practical items made use of in building, energy, and transport sectors.
2.2 Quality Control and Efficiency Uniformity
Making certain uniform pore structure, regular density, and reliable thermal efficiency across huge manufacturing sets is crucial for real-world deployment.
Producers employ extensive quality control procedures, consisting of laser scanning for density variation, infrared thermography for thermal mapping, and gravimetric evaluation for wetness resistance.
Batch-to-batch reproducibility is important, specifically in aerospace and oil & gas markets, where failure as a result of insulation breakdown can have extreme consequences.
In addition, standardized testing according to ASTM C177 (warm circulation meter) or ISO 9288 ensures precise coverage of thermal conductivity and allows fair comparison with typical insulators like mineral woollen or foam.
3. Thermal and Multifunctional Residence
3.1 Superior Insulation Across Temperature Ranges
Aerogel coverings exhibit impressive thermal efficiency not just at ambient temperature levels however additionally throughout extreme arrays– from cryogenic conditions below -100 ° C to high temperatures going beyond 600 ° C, depending upon the base product and fiber kind.
At cryogenic temperatures, standard foams may split or shed efficiency, whereas aerogel blankets remain flexible and maintain low thermal conductivity, making them suitable for LNG pipelines and storage tanks.
In high-temperature applications, such as industrial furnaces or exhaust systems, they offer efficient insulation with reduced thickness compared to bulkier choices, saving room and weight.
Their reduced emissivity and ability to mirror induction heat additionally improve performance in radiant obstacle setups.
This wide functional envelope makes aerogel coverings uniquely flexible amongst thermal management options.
3.2 Acoustic and Fireproof Qualities
Past thermal insulation, aerogel coverings demonstrate notable sound-dampening homes because of their open, tortuous pore structure that dissipates acoustic power through thick losses.
They are increasingly utilized in vehicle and aerospace cabins to lower sound pollution without adding considerable mass.
Additionally, most silica-based aerogel blankets are non-combustible, attaining Course A fire rankings, and do not launch poisonous fumes when subjected to fire– critical for constructing safety and public infrastructure.
Their smoke thickness is extremely low, improving exposure throughout emergency evacuations.
4. Applications in Market and Emerging Technologies
4.1 Energy Efficiency in Structure and Industrial Solution
Aerogel blankets are changing power performance in design and industrial engineering by making it possible for thinner, higher-performance insulation layers.
In structures, they are made use of in retrofitting historic frameworks where wall thickness can not be boosted, or in high-performance façades and home windows to reduce thermal linking.
In oil and gas, they shield pipes lugging hot liquids or cryogenic LNG, decreasing power loss and stopping condensation or ice formation.
Their light-weight nature additionally decreases architectural lots, especially helpful in overseas platforms and mobile units.
4.2 Aerospace, Automotive, and Consumer Applications
In aerospace, aerogel coverings protect spacecraft from severe temperature level variations throughout re-entry and shield delicate instruments from thermal cycling in space.
NASA has actually utilized them in Mars vagabonds and astronaut suits for passive thermal law.
Automotive suppliers integrate aerogel insulation right into electrical lorry battery loads to prevent thermal runaway and boost security and effectiveness.
Customer items, including exterior apparel, footwear, and outdoor camping gear, currently feature aerogel linings for superior warmth without mass.
As production expenses decrease and sustainability improves, aerogel blankets are positioned to come to be traditional options in international initiatives to reduce energy usage and carbon emissions.
Finally, aerogel blankets represent a convergence of nanotechnology and sensible engineering, delivering unparalleled thermal efficiency in a versatile, durable layout.
Their ability to save power, room, and weight while keeping security and environmental compatibility positions them as crucial enablers of lasting innovation throughout varied industries.
