Bearings are usually called the “joints of industry.” Getting the option right directly influences your tools’s reliability, life span, and maintenance expenses. Lots of bearing failures don’t come from low quality– they originate from incorrect options. Things like load computation errors, overlooking speed restrictions, or choosing the incorrect lubrication approach. These small blunders can trigger devices to damage down early in its life span. This overview walks you through the whole selection procedure, giving designers and procurement specialists a clear path from analyzing working problems to verifying the best bearing model.
Part One: What You Required to Know Prior To Beginning
Prior to you open up any type of bearing brochure, ask yourself one inquiry: Exactly what does this device need the bearing to do? The solution lies in five key locations:
1. Lots Attributes
Load is the top factor in bearing choice. You require to identify 3 points:
Instructions: Is it radial lots (vertical to the shaft), axial lots (alongside the shaft), or a combination of both?
Dimension: Is it light, moderate, or heavy? Any kind of effect tons?
Nature: Is the load stable or changing? Just how typically do impact loads happen and exactly how strong are they?
Take a belt conveyor as an example. The bearings at the drive end take on radial lots from belt tension, the weight of the belt and rollers, plus the shaft setting up. When calculating, you need to take into consideration various operating conditions– start-up, regular running, stopping– and make use of the worst-case scenario for your style.
2. Rate Conditions

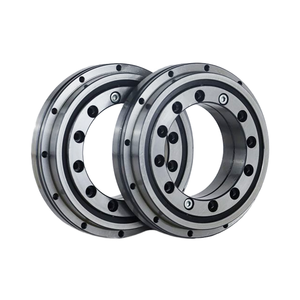

(bearings for steel mill)
Speed is another vital element influencing bearing life. According to tiredness life theory, bearing life has an inverted partnership with speed. For variable rate problems, you require to determine the equal rate. Take a rotary kiln assistance roller– its rate might range from 0.5 to 2.5 r/min. You would certainly need to weight the running time at each speed to get a comparable value.
One point to look out for: recognizing just the maximum speed can mess up your lubrication method. The lube you choose based on top speed may not create a proper oil movie at reduced rates. Also, if your equipment has long idle periods, you should point out that– or else neighboring equipment vibrations can cause incorrect brinelling damages.
3. Required Life Span
Birthing service life is usually revealed as L10h (the variety of hours that 90% of a bearing team will reach before fatigue spalling shows up). An usual mistake is going with an extremely long life– as soon as L10h goes beyond 100,000 hours, the bearing size obtains also huge. It becomes tougher to lube, torque increases, and it ends up being extra sensitive to minimum load. In the end, it could fail for factors besides tiredness.
4. Area Restrictions
You ought to recognize your readily available room limitations from the start– shaft diameter range, real estate bore size, axial size restrictions. As soon as you know the matching shaft size and available space, you can rapidly narrow down your alternatives.
5. Running Accuracy Demands
Many applications do simply great with standard accuracy bearings. However, for high-speed or high-precision devices like maker tool spindles, you’ll require P5, P4, or even greater grades. Just keep in mind that going for higher precision without an actual need will certainly increase costs dramatically. Suit the grade to your real needs.
Part Two: Matching Bearing Types to Working Conditions
Once you have those specifications clear, the next step is to match the right bearing kind based on tons instructions, size, rate, and misalignment tolerance.
1. Tons Direction: Radial, Axial, or Combined?

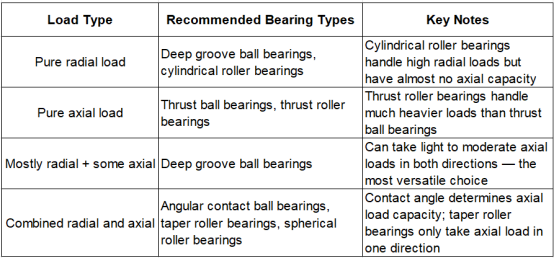

This is the most fundamental filter. It can aim you to a couple of candidates right now:
When the axial-to-radial load proportion (Fa/Fr) changes, your selection logic changes also. At low proportions, choose deep groove ball bearings. At moderate proportions, use small-contact-angle angular get in touch with bearings or taper roller bearings. At high proportions, you’ll require large-contact-angle bearings, or think about integrating a drive bearing with a radial bearing.
( Radial)
2. Lots Size: Ball Bearings or Roller Bearings?
This is a timeless selection:
Light or modest lots: Opt for sphere bearings (deep groove or angular get in touch with). The factor call between rounds and raceways provides reduced friction, making them ideal for medium to high speeds.
Heavy or impact loads: You should utilize roller bearings (cylindrical, round, or taper). Line get in touch with between rollers and raceways provides a lot greater tons ability and much better impact resistance.
3. Rate: Round Bearings for Broadband, Roller Bearings for Low
Usually speaking, round bearings have greater speed restrictions than roller bearings. For high-speed applications (above 1000 r/min), placed sphere bearings on top of your list. When you require the greatest possible rate with pure radial tons, open deep groove sphere bearings are your best bet. For integrated tons at broadband, angular call round bearings are the means to go.
Cylindrical roller bearings, taper roller bearings, and needle bearings have fairly reduced rate limits. They’re primarily matched for low-to-medium speed, heavy-load problems.
4. Imbalance Tolerance: Do You Need Self-Aligning?
This often gets overlooked but it’s exceptionally important. You should take into consideration self-aligning bearings when:
Birthing housing bores don’t line up well
The shaft isn’t rigid sufficient and bends during procedure
The bearing period is long and thermal growth creates angular imbalance
You’re making use of different split housings (like pillow block bearings)
Round roller bearings and spherical ball bearings have scooped external ring raceways. This allows a specific amount of angular misalignment between the internal and outer rings without harmful edge stress. They can make up for both dynamic deflection and fixed installation errors.
On the other hand, cylindrical roller bearings, taper roller bearings, and needle bearings have extremely restricted self-aligning ability. Even a small angular imbalance can create stress and anxiety concentration at the roller finishes, leading to high edge stress that dramatically shorten birthing life. Deep groove ball bearings do have some self-aligning capability, yet the allowable angle is small– exceeding it will reduce life also.
5. Axial Growth Compensation: Fixed End or Floating End?
Lengthy shafts increase and contract with temperature level changes during procedure. That suggests you require to establish your bearing arrangement with one set end and one drifting end.
NU and N series round roller bearings have no flanges on the internal ring (or on one side). This allows the shaft action openly in the axial direction relative to the housing– making them optimal as floating-end bearings. NJ and NUP collection can give axial positioning in one or both instructions, so they work well as fixed-end bearings. This setup is really usual in transmissions and electric motors.
Part Three: BMB Product Line at a Glance

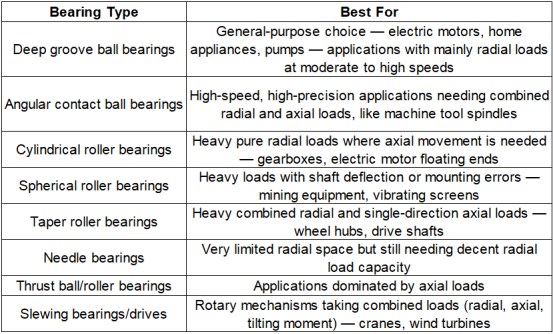

BMB uses a complete series of industrial bearings, covering all the major kinds we have actually gone over. This quick referral table attaches the option concepts above directly to specific item groups:
Component 4: Diving Deeper– Precision, Clearance, Lubrication, and Seals
( Axial)
1. Accuracy Grades
Criterion accuracy (P0) benefits the substantial majority of general machinery. For precision equipment like equipment tool spindles or aerospace elements, you’ll need P5 or greater. Tighter precision implies tighter dimensional tolerances and much better running precision– yet also greater expenses.
2. Internal Clearance and Preload
Bearings require to preserve proper internal clearance after installment. Excessive clearance causes vibration and noise. Too little, and thermal development can create the bearing to take. In grandfather clauses like device pins, preload (applying unfavorable clearance) is utilized to enhance system strength and rotational accuracy.
3. Lubricant Choice
Lubrication is a make-or-break element for bearing life. Grease helps the majority of moderate-speed and temperature applications– it’s basic to seal and can run maintenance-free for long periods. Oil (oil bath, oil mist, jet lubrication) is much better for high-speed or high-temperature conditions, as it dissipates heat more effectively. When selecting a lubricant, check the speed aspect (ndm value). Don’t simply pick based on maximum rate– the oil you pick might not form an appropriate movie at reduced speeds.
4. Sealing Arrangements
Pick the seal type based upon your setting: call seals keep dust out well however include some friction; non-contact seals benefit broadband however offer less security against contamination; open bearings rely on external securing systems.
Component 5: Life Estimation– From Theory to Technique
( or Combined Basic Filter Table)
At the end of the day, you require to verify whether your picked bearing will in fact meet the predicted life span. This is where standard score life computation can be found in.
The standard ranking life L10 formula (ISO 281 requirement):
For ball bearings: L10 = (C/P) FOUR × (10 ⁶/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 SIX/ 60n) hours
Where:
C: standard dynamic lots score (kN)– located in the product directory
P: equal dynamic lots (kN)– takes both radial and axial tons right into account
The equal vibrant tons P is determined as: P = X · Fr + Y · Fa
Fr is the radial load, Fa is the axial tons
X and Y are coefficients that rely on bearing type and the Fa/Fr proportion– examine the directory for these worths
For even more demanding problems, you can apply modification variables: Ln = a1 × a2 × a3 × L10
a1 is the reliability aspect (a1 = 1 for 90% dependability, about 0.21 for 99%)
a2 is the material factor (high-grade bearing steel can reach 1.5 to 2)
a3 is the operating conditions variable (good lubrication and sanitation can provide 2 to 3)
With this estimation, engineers can validate that the chosen bearing satisfies the required service life. It additionally helps compare several choices and make data-driven decisions.
This overview has actually walked you via the complete choice course– from assessing working problems, to matching the right bearing type, to verifying life span. Understanding and using this method will certainly help you make precise, efficient, and cost-efficient bearing choices throughout a large range of industrial applications.
