1. Material Fundamentals and Crystal Chemistry
1.1 Structure and Polymorphic Framework
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance composed of silicon and carbon atoms in a 1:1 stoichiometric ratio, renowned for its phenomenal firmness, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal structures varying in stacking series– amongst which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most technically appropriate.
The solid directional covalent bonds (Si– C bond power ~ 318 kJ/mol) result in a high melting point (~ 2700 ° C), low thermal development (~ 4.0 × 10 ⁻⁶/ K), and exceptional resistance to thermal shock.
Unlike oxide ceramics such as alumina, SiC lacks an indigenous glassy phase, adding to its security in oxidizing and destructive environments up to 1600 ° C.
Its broad bandgap (2.3– 3.3 eV, depending upon polytype) additionally enhances it with semiconductor homes, enabling double use in structural and digital applications.
1.2 Sintering Obstacles and Densification Approaches
Pure SiC is very tough to compress because of its covalent bonding and low self-diffusion coefficients, requiring the use of sintering aids or advanced processing methods.
Reaction-bonded SiC (RB-SiC) is generated by penetrating porous carbon preforms with molten silicon, creating SiC sitting; this technique returns near-net-shape parts with residual silicon (5– 20%).
Solid-state sintered SiC (SSiC) uses boron and carbon ingredients to promote densification at ~ 2000– 2200 ° C under inert ambience, accomplishing > 99% academic thickness and premium mechanical homes.
Liquid-phase sintered SiC (LPS-SiC) employs oxide additives such as Al ₂ O FIVE– Y ₂ O SIX, creating a transient fluid that enhances diffusion yet may decrease high-temperature toughness due to grain-boundary stages.
Warm pressing and stimulate plasma sintering (SPS) provide rapid, pressure-assisted densification with great microstructures, perfect for high-performance elements needing minimal grain development.
2. Mechanical and Thermal Performance Characteristics
2.1 Strength, Hardness, and Use Resistance
Silicon carbide porcelains show Vickers firmness values of 25– 30 GPa, 2nd only to ruby and cubic boron nitride amongst design products.
Their flexural toughness typically ranges from 300 to 600 MPa, with crack toughness (K_IC) of 3– 5 MPa · m 1ST/ TWO– moderate for porcelains however enhanced through microstructural engineering such as whisker or fiber support.
The combination of high firmness and flexible modulus (~ 410 GPa) makes SiC incredibly immune to rough and erosive wear, exceeding tungsten carbide and set steel in slurry and particle-laden environments.
( Silicon Carbide Ceramics)
In commercial applications such as pump seals, nozzles, and grinding media, SiC elements show service lives numerous times much longer than conventional alternatives.
Its reduced density (~ 3.1 g/cm FOUR) more adds to put on resistance by reducing inertial pressures in high-speed rotating components.
2.2 Thermal Conductivity and Security
Among SiC’s most distinct features is its high thermal conductivity– ranging from 80 to 120 W/(m · K )for polycrystalline kinds, and approximately 490 W/(m · K) for single-crystal 4H-SiC– surpassing most steels other than copper and aluminum.
This residential or commercial property makes it possible for effective heat dissipation in high-power electronic substrates, brake discs, and warmth exchanger parts.
Coupled with reduced thermal expansion, SiC exhibits outstanding thermal shock resistance, quantified by the R-parameter (σ(1– ν)k/ αE), where high worths indicate resilience to quick temperature level adjustments.

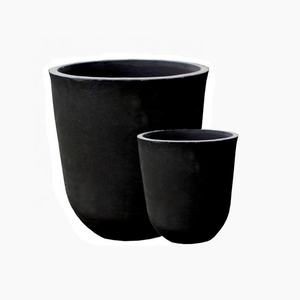

For example, SiC crucibles can be warmed from area temperature to 1400 ° C in mins without fracturing, an accomplishment unattainable for alumina or zirconia in comparable problems.
Moreover, SiC maintains stamina up to 1400 ° C in inert atmospheres, making it perfect for heating system fixtures, kiln furniture, and aerospace elements revealed to extreme thermal cycles.
3. Chemical Inertness and Rust Resistance
3.1 Behavior in Oxidizing and Minimizing Ambiences
At temperatures below 800 ° C, SiC is highly stable in both oxidizing and decreasing settings.
Above 800 ° C in air, a protective silica (SiO ₂) layer types on the surface area through oxidation (SiC + 3/2 O ₂ → SiO ₂ + CARBON MONOXIDE), which passivates the material and reduces additional degradation.
Nevertheless, in water vapor-rich or high-velocity gas streams over 1200 ° C, this silica layer can volatilize as Si(OH)₄, leading to increased economic crisis– an important consideration in turbine and combustion applications.
In lowering ambiences or inert gases, SiC remains secure as much as its decomposition temperature (~ 2700 ° C), with no phase modifications or stamina loss.
This stability makes it suitable for molten metal handling, such as light weight aluminum or zinc crucibles, where it withstands moistening and chemical strike much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is basically inert to all acids other than hydrofluoric acid (HF) and solid oxidizing acid mixes (e.g., HF– HNO THREE).
It shows outstanding resistance to alkalis up to 800 ° C, though long term direct exposure to molten NaOH or KOH can trigger surface area etching via development of soluble silicates.
In liquified salt environments– such as those in concentrated solar energy (CSP) or nuclear reactors– SiC shows exceptional corrosion resistance contrasted to nickel-based superalloys.
This chemical effectiveness underpins its usage in chemical procedure tools, consisting of valves, linings, and heat exchanger tubes dealing with hostile media like chlorine, sulfuric acid, or seawater.
4. Industrial Applications and Emerging Frontiers
4.1 Established Uses in Power, Protection, and Production
Silicon carbide ceramics are indispensable to many high-value industrial systems.
In the energy field, they work as wear-resistant linings in coal gasifiers, parts in nuclear fuel cladding (SiC/SiC compounds), and substrates for high-temperature solid oxide fuel cells (SOFCs).
Protection applications include ballistic armor plates, where SiC’s high hardness-to-density ratio offers superior security against high-velocity projectiles compared to alumina or boron carbide at reduced cost.
In production, SiC is utilized for accuracy bearings, semiconductor wafer handling components, and abrasive blowing up nozzles due to its dimensional stability and pureness.
Its usage in electric lorry (EV) inverters as a semiconductor substrate is quickly growing, driven by effectiveness gains from wide-bandgap electronic devices.
4.2 Next-Generation Advancements and Sustainability
Continuous study concentrates on SiC fiber-reinforced SiC matrix composites (SiC/SiC), which show pseudo-ductile habits, boosted strength, and preserved stamina over 1200 ° C– perfect for jet engines and hypersonic lorry leading sides.
Additive manufacturing of SiC via binder jetting or stereolithography is advancing, making it possible for complicated geometries formerly unattainable through typical creating techniques.
From a sustainability perspective, SiC’s durability minimizes replacement regularity and lifecycle discharges in industrial systems.
Recycling of SiC scrap from wafer cutting or grinding is being developed through thermal and chemical healing procedures to recover high-purity SiC powder.
As markets push towards greater effectiveness, electrification, and extreme-environment procedure, silicon carbide-based porcelains will stay at the leading edge of sophisticated products design, connecting the space in between architectural resilience and functional convenience.
