1. Product Structures and Synergistic Style
1.1 Intrinsic Features of Component Phases

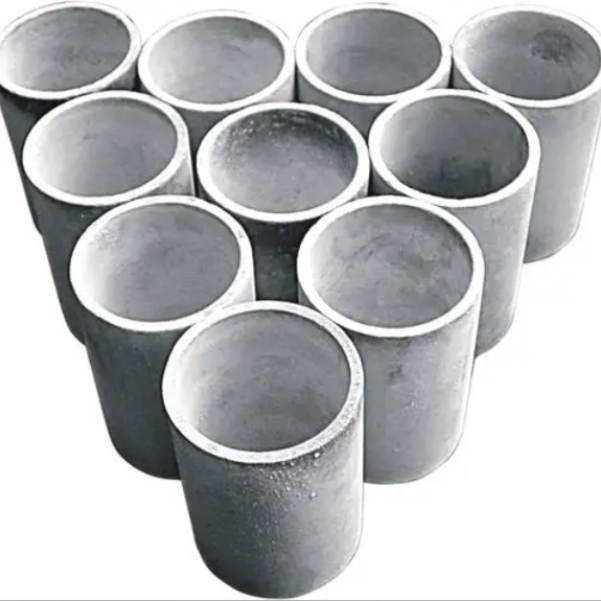

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si ₃ N ₄) and silicon carbide (SiC) are both covalently bonded, non-oxide porcelains renowned for their phenomenal performance in high-temperature, harsh, and mechanically demanding atmospheres.
Silicon nitride exhibits exceptional crack sturdiness, thermal shock resistance, and creep security as a result of its distinct microstructure made up of elongated β-Si five N ₄ grains that allow split deflection and bridging systems.
It preserves stamina approximately 1400 ° C and possesses a fairly low thermal expansion coefficient (~ 3.2 × 10 ⁻⁶/ K), reducing thermal stress and anxieties throughout quick temperature adjustments.
In contrast, silicon carbide offers remarkable firmness, thermal conductivity (as much as 120– 150 W/(m · K )for single crystals), oxidation resistance, and chemical inertness, making it perfect for abrasive and radiative heat dissipation applications.
Its large bandgap (~ 3.3 eV for 4H-SiC) additionally provides outstanding electrical insulation and radiation tolerance, valuable in nuclear and semiconductor contexts.
When incorporated right into a composite, these materials display complementary actions: Si two N four enhances durability and damages tolerance, while SiC enhances thermal monitoring and wear resistance.
The resulting crossbreed ceramic achieves a balance unattainable by either stage alone, creating a high-performance structural material tailored for extreme service problems.
1.2 Compound Architecture and Microstructural Engineering
The layout of Si three N FOUR– SiC composites entails exact control over stage circulation, grain morphology, and interfacial bonding to optimize collaborating impacts.
Typically, SiC is presented as fine particulate reinforcement (varying from submicron to 1 µm) within a Si four N four matrix, although functionally graded or layered designs are also checked out for specialized applications.
Throughout sintering– usually using gas-pressure sintering (GENERAL PRACTITIONER) or hot pushing– SiC bits influence the nucleation and growth kinetics of β-Si five N four grains, usually advertising finer and more evenly oriented microstructures.
This improvement boosts mechanical homogeneity and reduces imperfection dimension, adding to improved strength and integrity.
Interfacial compatibility in between both stages is crucial; because both are covalent ceramics with similar crystallographic balance and thermal development habits, they form coherent or semi-coherent boundaries that withstand debonding under lots.
Additives such as yttria (Y TWO O TWO) and alumina (Al ₂ O FOUR) are utilized as sintering help to promote liquid-phase densification of Si three N ₄ without compromising the security of SiC.
However, too much additional stages can deteriorate high-temperature efficiency, so structure and handling have to be maximized to decrease lustrous grain limit films.
2. Processing Methods and Densification Challenges

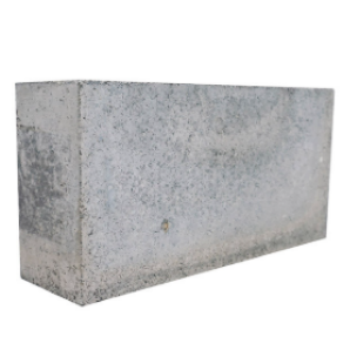

( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Prep Work and Shaping Approaches
High-grade Si Four N ₄– SiC compounds start with uniform blending of ultrafine, high-purity powders utilizing damp ball milling, attrition milling, or ultrasonic diffusion in organic or liquid media.
Achieving consistent diffusion is vital to stop load of SiC, which can work as anxiety concentrators and reduce fracture sturdiness.
Binders and dispersants are added to maintain suspensions for forming techniques such as slip spreading, tape spreading, or injection molding, depending on the preferred part geometry.
Environment-friendly bodies are then meticulously dried out and debound to get rid of organics prior to sintering, a process requiring regulated home heating prices to stay clear of fracturing or contorting.
For near-net-shape production, additive strategies like binder jetting or stereolithography are emerging, enabling intricate geometries formerly unattainable with typical ceramic processing.
These methods call for tailored feedstocks with enhanced rheology and green strength, commonly including polymer-derived ceramics or photosensitive materials filled with composite powders.
2.2 Sintering Mechanisms and Stage Security
Densification of Si Three N FOUR– SiC composites is testing due to the strong covalent bonding and restricted self-diffusion of nitrogen and carbon at functional temperature levels.
Liquid-phase sintering utilizing rare-earth or alkaline earth oxides (e.g., Y TWO O ₃, MgO) decreases the eutectic temperature level and enhances mass transportation through a transient silicate melt.
Under gas stress (usually 1– 10 MPa N ₂), this thaw facilitates rearrangement, solution-precipitation, and last densification while reducing decomposition of Si six N ₄.
The existence of SiC influences thickness and wettability of the liquid phase, possibly changing grain growth anisotropy and final texture.
Post-sintering heat treatments might be applied to crystallize recurring amorphous stages at grain limits, enhancing high-temperature mechanical properties and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are regularly utilized to validate stage pureness, lack of undesirable additional phases (e.g., Si two N TWO O), and consistent microstructure.
3. Mechanical and Thermal Efficiency Under Tons
3.1 Stamina, Sturdiness, and Fatigue Resistance
Si ₃ N ₄– SiC composites demonstrate premium mechanical efficiency compared to monolithic porcelains, with flexural strengths going beyond 800 MPa and fracture strength worths reaching 7– 9 MPa · m ONE/ ².
The reinforcing impact of SiC bits hinders dislocation motion and crack propagation, while the elongated Si six N ₄ grains continue to provide strengthening through pull-out and linking systems.
This dual-toughening strategy causes a material highly resistant to influence, thermal biking, and mechanical tiredness– important for turning elements and structural components in aerospace and power systems.
Creep resistance stays superb up to 1300 ° C, credited to the security of the covalent network and minimized grain boundary gliding when amorphous stages are decreased.
Hardness worths usually vary from 16 to 19 GPa, offering superb wear and disintegration resistance in abrasive atmospheres such as sand-laden circulations or moving contacts.
3.2 Thermal Monitoring and Ecological Longevity
The enhancement of SiC dramatically elevates the thermal conductivity of the composite, commonly increasing that of pure Si two N ₄ (which varies from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending upon SiC web content and microstructure.
This boosted warmth transfer ability permits a lot more effective thermal monitoring in components exposed to intense localized home heating, such as burning liners or plasma-facing components.
The composite preserves dimensional stability under steep thermal slopes, standing up to spallation and fracturing as a result of matched thermal expansion and high thermal shock specification (R-value).
Oxidation resistance is an additional vital benefit; SiC forms a safety silica (SiO ₂) layer upon direct exposure to oxygen at raised temperatures, which better densifies and seals surface area problems.
This passive layer shields both SiC and Si Two N FOUR (which also oxidizes to SiO ₂ and N TWO), making sure lasting longevity in air, steam, or burning ambiences.
4. Applications and Future Technical Trajectories
4.1 Aerospace, Energy, and Industrial Systems
Si Three N FOUR– SiC compounds are increasingly released in next-generation gas generators, where they enable higher operating temperature levels, boosted fuel efficiency, and reduced cooling needs.
Parts such as turbine blades, combustor linings, and nozzle guide vanes take advantage of the material’s capability to stand up to thermal biking and mechanical loading without substantial degradation.
In nuclear reactors, especially high-temperature gas-cooled activators (HTGRs), these compounds act as fuel cladding or architectural supports due to their neutron irradiation resistance and fission item retention capability.
In industrial settings, they are utilized in liquified metal handling, kiln furnishings, and wear-resistant nozzles and bearings, where traditional steels would certainly fail prematurely.
Their light-weight nature (density ~ 3.2 g/cm FOUR) also makes them attractive for aerospace propulsion and hypersonic car elements based on aerothermal home heating.
4.2 Advanced Manufacturing and Multifunctional Integration
Arising study concentrates on creating functionally rated Si six N FOUR– SiC structures, where composition differs spatially to optimize thermal, mechanical, or electromagnetic buildings across a single element.
Crossbreed systems including CMC (ceramic matrix composite) architectures with fiber support (e.g., SiC_f/ SiC– Si Four N FOUR) push the borders of damage resistance and strain-to-failure.
Additive manufacturing of these compounds allows topology-optimized warmth exchangers, microreactors, and regenerative cooling channels with internal lattice structures unachievable through machining.
Furthermore, their intrinsic dielectric buildings and thermal stability make them prospects for radar-transparent radomes and antenna home windows in high-speed platforms.
As needs grow for materials that carry out accurately under extreme thermomechanical tons, Si ₃ N ₄– SiC compounds stand for an essential advancement in ceramic engineering, combining toughness with performance in a single, lasting system.
To conclude, silicon nitride– silicon carbide composite porcelains exemplify the power of materials-by-design, leveraging the strengths of 2 innovative porcelains to develop a hybrid system efficient in prospering in the most severe functional environments.
Their proceeded development will play a central duty in advancing clean energy, aerospace, and commercial modern technologies in the 21st century.
