1. Material Basics and Morphological Advantages
1.1 Crystal Structure and Chemical Make-up

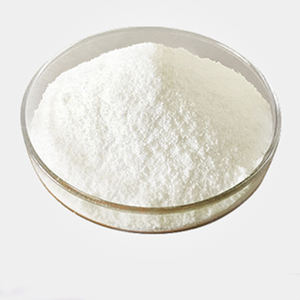

(Spherical alumina)
Round alumina, or spherical light weight aluminum oxide (Al two O TWO), is an artificially created ceramic product characterized by a well-defined globular morphology and a crystalline structure primarily in the alpha (α) stage.
Alpha-alumina, the most thermodynamically stable polymorph, features a hexagonal close-packed plan of oxygen ions with aluminum ions inhabiting two-thirds of the octahedral interstices, causing high latticework power and outstanding chemical inertness.
This phase exhibits superior thermal security, keeping integrity as much as 1800 ° C, and resists reaction with acids, antacid, and molten steels under many commercial problems.
Unlike uneven or angular alumina powders stemmed from bauxite calcination, spherical alumina is crafted with high-temperature procedures such as plasma spheroidization or flame synthesis to attain consistent satiation and smooth surface texture.
The change from angular precursor particles– frequently calcined bauxite or gibbsite– to dense, isotropic spheres removes sharp edges and interior porosity, enhancing packaging performance and mechanical resilience.
High-purity grades (â„ 99.5% Al â O THREE) are important for digital and semiconductor applications where ionic contamination should be lessened.
1.2 Bit Geometry and Packing Actions
The specifying function of spherical alumina is its near-perfect sphericity, normally measured by a sphericity index > 0.9, which significantly influences its flowability and packing density in composite systems.
Unlike angular bits that interlock and develop gaps, round bits roll previous one another with very little friction, making it possible for high solids packing during solution of thermal user interface products (TIMs), encapsulants, and potting substances.
This geometric uniformity permits maximum academic packing densities exceeding 70 vol%, far surpassing the 50– 60 vol% typical of uneven fillers.
Higher filler filling directly converts to enhanced thermal conductivity in polymer matrices, as the continual ceramic network supplies effective phonon transportation paths.
Additionally, the smooth surface area lowers endure handling tools and decreases viscosity rise during blending, improving processability and diffusion stability.
The isotropic nature of rounds likewise prevents orientation-dependent anisotropy in thermal and mechanical residential properties, ensuring regular efficiency in all directions.
2. Synthesis Approaches and Quality Control
2.1 High-Temperature Spheroidization Methods
The manufacturing of round alumina primarily depends on thermal methods that thaw angular alumina bits and allow surface stress to improve them right into balls.
( Spherical alumina)
Plasma spheroidization is the most commonly made use of commercial method, where alumina powder is infused right into a high-temperature plasma flame (as much as 10,000 K), causing instantaneous melting and surface tension-driven densification right into ideal spheres.
The liquified beads strengthen swiftly throughout flight, creating thick, non-porous bits with uniform size distribution when coupled with accurate category.
Alternate approaches consist of fire spheroidization utilizing oxy-fuel torches and microwave-assisted heating, though these normally use lower throughput or less control over particle dimension.
The starting product’s pureness and bit size circulation are vital; submicron or micron-scale forerunners produce correspondingly sized rounds after processing.
Post-synthesis, the item goes through extensive sieving, electrostatic splitting up, and laser diffraction evaluation to ensure limited fragment dimension circulation (PSD), generally ranging from 1 to 50 ”m relying on application.
2.2 Surface Modification and Useful Customizing
To enhance compatibility with natural matrices such as silicones, epoxies, and polyurethanes, spherical alumina is frequently surface-treated with combining representatives.
Silane coupling agents– such as amino, epoxy, or vinyl practical silanes– kind covalent bonds with hydroxyl teams on the alumina surface while giving natural performance that interacts with the polymer matrix.
This therapy enhances interfacial attachment, minimizes filler-matrix thermal resistance, and prevents pile, causing even more uniform compounds with exceptional mechanical and thermal performance.
Surface coverings can additionally be engineered to give hydrophobicity, improve diffusion in nonpolar resins, or enable stimuli-responsive habits in clever thermal materials.
Quality control consists of measurements of wager area, faucet density, thermal conductivity (typically 25– 35 W/(m · K )for dense α-alumina), and impurity profiling via ICP-MS to omit Fe, Na, and K at ppm levels.
Batch-to-batch consistency is vital for high-reliability applications in electronics and aerospace.
3. Thermal and Mechanical Efficiency in Composites
3.1 Thermal Conductivity and Interface Engineering
Spherical alumina is primarily employed as a high-performance filler to boost the thermal conductivity of polymer-based products used in electronic packaging, LED lights, and power modules.
While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), loading with 60– 70 vol% round alumina can increase this to 2– 5 W/(m · K), enough for effective warm dissipation in portable gadgets.
The high innate thermal conductivity of α-alumina, combined with minimal phonon spreading at smooth particle-particle and particle-matrix user interfaces, enables effective heat transfer via percolation networks.
Interfacial thermal resistance (Kapitza resistance) continues to be a limiting factor, yet surface area functionalization and maximized dispersion methods help minimize this obstacle.
In thermal user interface products (TIMs), spherical alumina decreases contact resistance in between heat-generating parts (e.g., CPUs, IGBTs) and heat sinks, preventing getting too hot and prolonging device lifespan.
Its electric insulation (resistivity > 10 ÂčÂČ Î© · cm) ensures safety in high-voltage applications, distinguishing it from conductive fillers like steel or graphite.
3.2 Mechanical Stability and Dependability
Past thermal efficiency, round alumina improves the mechanical toughness of compounds by boosting solidity, modulus, and dimensional security.
The spherical form distributes stress uniformly, lowering fracture initiation and propagation under thermal cycling or mechanical load.
This is particularly essential in underfill materials and encapsulants for flip-chip and 3D-packaged devices, where coefficient of thermal development (CTE) inequality can cause delamination.
By changing filler loading and particle dimension distribution (e.g., bimodal blends), the CTE of the composite can be tuned to match that of silicon or published circuit card, reducing thermo-mechanical tension.
In addition, the chemical inertness of alumina protects against degradation in damp or destructive settings, making sure lasting dependability in automobile, commercial, and outside electronic devices.
4. Applications and Technological Advancement
4.1 Electronics and Electric Automobile Equipments
Spherical alumina is an essential enabler in the thermal administration of high-power electronics, including insulated gate bipolar transistors (IGBTs), power materials, and battery monitoring systems in electrical automobiles (EVs).
In EV battery packs, it is integrated into potting compounds and phase modification materials to stop thermal runaway by evenly distributing warm across cells.
LED suppliers utilize it in encapsulants and second optics to maintain lumen result and color consistency by decreasing junction temperature.
In 5G infrastructure and data facilities, where warm flux thickness are increasing, spherical alumina-filled TIMs ensure secure operation of high-frequency chips and laser diodes.
Its role is expanding right into sophisticated packaging technologies such as fan-out wafer-level product packaging (FOWLP) and embedded die systems.
4.2 Emerging Frontiers and Lasting Advancement
Future developments concentrate on hybrid filler systems combining spherical alumina with boron nitride, light weight aluminum nitride, or graphene to achieve synergistic thermal efficiency while preserving electrical insulation.
Nano-spherical alumina (sub-100 nm) is being discovered for clear ceramics, UV layers, and biomedical applications, though challenges in dispersion and price remain.
Additive manufacturing of thermally conductive polymer composites using spherical alumina makes it possible for complicated, topology-optimized warm dissipation structures.
Sustainability efforts consist of energy-efficient spheroidization processes, recycling of off-spec product, and life-cycle evaluation to decrease the carbon impact of high-performance thermal materials.
In summary, spherical alumina stands for an essential engineered product at the crossway of ceramics, composites, and thermal scientific research.
Its unique combination of morphology, pureness, and efficiency makes it important in the recurring miniaturization and power concentration of contemporary electronic and energy systems.
