1. Material Features and Structural Design
1.1 Composition and Crystalline Phases of Alumina

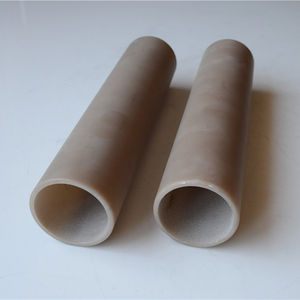

( Alumina Ceramic Tubes)
Alumina (Al ₂ O FOUR) ceramic tubes are primarily made from high-purity light weight aluminum oxide, with purity levels usually ranging from 90% to 99.8%, relying on the intended application.
The leading crystalline stage in totally thick, high-temperature sintered tubes is α-alumina (corundum), which shows a trigonal crystal framework and phenomenal thermodynamic security.
This stage transition from forerunner hydroxides (e.g., boehmite or gibbsite) to α-alumina happens over 1100 ° C and causes a thick, interlocking microstructure that provides superior mechanical strength and chemical resistance.
Higher pureness grades (≥ 99.5%) take full advantage of solidity, wear resistance, and dielectric efficiency, while lower-purity solutions might include second phases like mullite or lustrous grain border stages to decrease price or dressmaker thermal growth.
The capability to control grain dimension, porosity, and stage make-up throughout handling allows engineers to make improvements alumina tubes for details functional demands across diverse commercial domain names.
1.2 Mechanical, Thermal, and Electric Characteristic
Alumina ceramic tubes exhibit a distinct mix of physical homes that make them important in demanding engineering atmospheres.
With a Vickers solidity exceeding 1500 HV, they are very resistant to abrasion and erosion, surpassing most metals and polymers in wear-prone systems.
Their compressive stamina can get to 2000 MPa, making it possible for architectural usage under high mechanical loads, while flexural toughness commonly ranges from 300 to 500 MPa, depending on density and surface coating.
Thermally, alumina preserves stability approximately 1700 ° C in oxidizing atmospheres, with a low coefficient of thermal development (~ 8 ppm/K), contributing to outstanding thermal shock resistance when properly designed.
Although its thermal conductivity (~ 30 W/(m · K)) is moderate compared to steels or aluminum nitride, it suffices for several high-temperature applications where electric insulation and structural honesty are prioritized.
Electrically, alumina is a superior insulator with quantity resistivity > 10 ¹⁴ Ω · cm and high dielectric stamina (> 15 kV/mm), making it perfect for electrical feedthroughs, sensor housings, and high-voltage insulation.

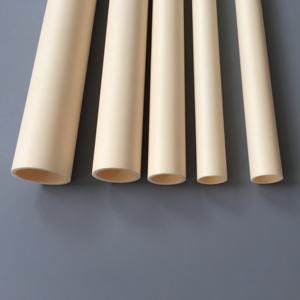

( Alumina Ceramic Tubes)
2. Manufacturing Processes and Dimensional Control
2.1 Shaping and Creating Strategies
The manufacturing of alumina ceramic tubes includes innovative forming methods tailored to accomplish accurate dimensions, wall thickness uniformity, and surface area top quality.
Usual techniques consist of extrusion, isostatic pushing, and slip casting, each suited to different size ranges and efficiency demands.
Extrusion is extensively used for long, straight tubes with constant cross-sections, where a plasticized alumina paste is forced via a die and cut to size prior to drying and sintering.
For high-precision or thin-walled tubes, chilly isostatic pushing (CIP) applies consistent stress from all instructions to portable eco-friendly bodies, minimizing distortion and boosting thickness homogeneity.
Slide spreading, entailing the deposition of a colloidal alumina suspension (slip) onto a permeable plaster mold, is perfect for complicated or large-diameter geometries with variable wall surface density.
After creating, tubes undergo cautious drying to avoid fracturing, adhered to by binder fatigue and high-temperature sintering (1500– 1650 ° C )to accomplish complete densification and dimensional security.
2.2 Ending Up and Quality Assurance
Post-sintering operations such as centerless grinding, splashing, and polishing are employed to attain tight resistances, smooth surface area coatings, and accurate inner and external diameters.
Resistances as tight as ± 0.01 mm are achievable for crucial applications in semiconductor processing or logical instrumentation.
Surface roughness can be lowered to Ra < 0.1 µm, minimizing bit capturing and improving compatibility with ultra-high vacuum cleaner (UHV) or cleanroom environments.
Non-destructive testing approaches– including ultrasonic inspection, X-ray radiography, and color penetrant testing– ensure architectural stability and lack of cracks or voids.
Dimensional assessment using coordinate measuring equipments (CMM) or laser scanning validates conformity with layout requirements, especially for custom-made or high-volume production runs.
3. Practical Performance in Harsh Environments
3.1 Resistance to Thermal and Chemical Destruction
Among the most engaging advantages of alumina ceramic tubes is their capacity to endure severe thermal and chemical conditions where steels and polymers fall short.
They continue to be dimensionally stable and mechanically robust in continual service at temperature levels above 1500 ° C, making them suitable for heating system liners, thermocouple defense sheaths, and radiant heating unit tubes.
Their inertness to thaw metals (e.g., light weight aluminum, zinc, and non-ferrous alloys), molten salts, and many acids (except hydrofluoric and warm phosphoric acid) enables use in metallurgical and chemical handling tools.
In oxidizing and minimizing atmospheres, alumina does not weaken or militarize unwanted responses, preserving procedure purity in semiconductor and glass production.
This chemical inertness additionally stops contamination in high-purity liquid taking care of systems, including those utilized in pharmaceutical and food processing industries.
3.2 Electrical Insulation and Plasma Resistance
In electrical and plasma atmospheres, alumina tubes function as insulating obstacles that keep circuit stability under high voltage and elevated temperature.
They are made use of in high-intensity discharge (HID) lamps, where they include ionized gases at temperatures exceeding 1000 ° C while standing up to electric potentials of a number of kilovolts.
In plasma etching and deposition systems, alumina tubes act as dielectric home windows or gas distribution components, resisting ion barrage and thermal biking without fracturing or outgassing.
Their reduced dielectric loss and high arc resistance avoid electrical monitoring and failure, guaranteeing lengthy service life in switchgear and power transmission parts.
These buildings are essential in preserving procedure stability and tools reliability in sophisticated manufacturing and energy systems.
4. Industrial and Arising Applications
4.1 High-Temperature and Industrial Processing Equipments
Alumina ceramic tubes are important to a vast array of industrial procedures that demand sturdiness under severe conditions.
In thermal processing, they serve as safety sheaths for thermocouples and heating elements in kilns, heaters, and warmth treatment devices, securing sensitive elements from harsh environments and mechanical wear.
In fluid handling, they deliver aggressive chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock permits rapid home heating and cooling cycles without failing, an essential benefit in cyclic industrial operations.
In glass production, alumina tubes lead liquified glass circulations and assistance creating tools, resisting disintegration from viscous, high-temperature thaws.
4.2 Advanced Technologies and Future Assimilation
Past typical commercial usages, alumina tubes are locating brand-new duties in cutting-edge technologies.
In semiconductor manufacture, ultra-pure alumina tubes are utilized in chemical vapor deposition (CVD) activators and ion implantation systems, where bit generation and metallic contamination have to be lessened.
In medical gadgets, biocompatible alumina tubes serve as insulating elements in surgical devices, dental implants, and diagnostic sensing units.
Study is exploring functionalized alumina tubes with ingrained sensing units or conductive traces for smart structural tracking in aerospace and energy systems.
Additive production (3D printing) of alumina is becoming a technique to create intricate tube geometries with internal channels or graded make-ups, allowing next-generation warmth exchangers and microreactors.
As markets press toward higher efficiency, cleaner processes, and better dependability, alumina ceramic tubes remain to advance as allowing elements in the infrastructure of contemporary innovation.
In summary, alumina ceramic tubes represent a fully grown yet dynamically advancing course of crafted products, incorporating remarkable thermal, mechanical, and electrical performance in a solitary not natural channel.
Their versatility throughout severe atmospheres guarantees their ongoing relevance in both developed commercial systems and arising state-of-the-art applications.
