1. Product Science and Structural Quality
1.1 Crystal Framework and Chemical Stability

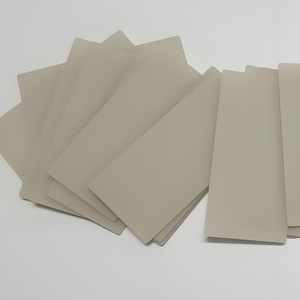

(Aluminum Nitride Ceramic Substrates)
Light weight aluminum nitride (AlN) is a wide bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, composed of alternating layers of aluminum and nitrogen atoms adhered via solid covalent interactions.
This durable atomic arrangement endows AlN with phenomenal thermal security, preserving architectural integrity approximately 2200 ° C in inert atmospheres and withstanding disintegration under extreme thermal cycling.
Unlike alumina (Al two O TWO), AlN is chemically inert to thaw steels and many reactive gases, making it appropriate for rough atmospheres such as semiconductor processing chambers and high-temperature furnaces.
Its high resistance to oxidation– creating just a slim protective Al two O six layer at surface upon direct exposure to air– makes certain lasting dependability without considerable destruction of bulk homes.
Furthermore, AlN exhibits exceptional electrical insulation with a resistivity surpassing 10 ¹⁴ Ω · cm and a dielectric stamina over 30 kV/mm, vital for high-voltage applications.
1.2 Thermal Conductivity and Digital Attributes
The most specifying function of aluminum nitride is its superior thermal conductivity, normally ranging from 140 to 180 W/(m · K )for commercial-grade substrates– over 5 times more than that of alumina (≈ 30 W/(m · K)).
This performance stems from the reduced atomic mass of nitrogen and aluminum, combined with strong bonding and marginal point defects, which allow efficient phonon transport through the latticework.
Nevertheless, oxygen impurities are particularly detrimental; also trace quantities (above 100 ppm) replacement for nitrogen websites, developing aluminum vacancies and spreading phonons, consequently drastically reducing thermal conductivity.
High-purity AlN powders manufactured via carbothermal decrease or direct nitridation are vital to achieve optimal warmth dissipation.
Regardless of being an electric insulator, AlN’s piezoelectric and pyroelectric buildings make it beneficial in sensing units and acoustic wave tools, while its wide bandgap (~ 6.2 eV) sustains procedure in high-power and high-frequency digital systems.
2. Construction Processes and Production Obstacles

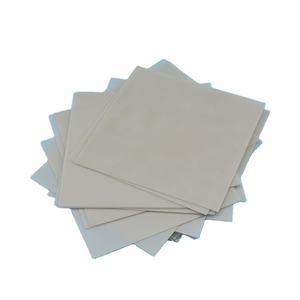

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Techniques
Making high-performance AlN substrates starts with the synthesis of ultra-fine, high-purity powder, frequently accomplished through responses such as Al Two O FIVE + 3C + N ₂ → 2AlN + 3CO (carbothermal decrease) or straight nitridation of aluminum steel: 2Al + N TWO → 2AlN.
The resulting powder should be meticulously crushed and doped with sintering aids like Y ₂ O TWO, CaO, or uncommon earth oxides to promote densification at temperature levels in between 1700 ° C and 1900 ° C under nitrogen ambience.
These additives create transient liquid stages that boost grain border diffusion, making it possible for full densification (> 99% theoretical density) while decreasing oxygen contamination.
Post-sintering annealing in carbon-rich settings can further minimize oxygen content by getting rid of intergranular oxides, thus recovering peak thermal conductivity.
Achieving consistent microstructure with regulated grain size is crucial to balance mechanical toughness, thermal efficiency, and manufacturability.
2.2 Substrate Forming and Metallization
When sintered, AlN porcelains are precision-ground and washed to satisfy tight dimensional tolerances needed for electronic packaging, commonly down to micrometer-level flatness.
Through-hole boring, laser cutting, and surface patterning enable assimilation right into multilayer packages and crossbreed circuits.
An important step in substrate manufacture is metallization– the application of conductive layers (commonly tungsten, molybdenum, or copper) through processes such as thick-film printing, thin-film sputtering, or straight bonding of copper (DBC).
For DBC, copper foils are bound to AlN surfaces at raised temperatures in a regulated environment, creating a solid user interface appropriate for high-current applications.
Alternative strategies like energetic steel brazing (AMB) make use of titanium-containing solders to boost attachment and thermal fatigue resistance, especially under duplicated power cycling.
Correct interfacial engineering makes certain low thermal resistance and high mechanical reliability in running tools.
3. Efficiency Advantages in Electronic Systems
3.1 Thermal Management in Power Electronic Devices
AlN substratums master managing heat generated by high-power semiconductor tools such as IGBTs, MOSFETs, and RF amplifiers utilized in electrical cars, renewable resource inverters, and telecommunications infrastructure.
Reliable heat extraction avoids local hotspots, reduces thermal tension, and extends device life time by mitigating electromigration and delamination risks.
Compared to typical Al ₂ O ₃ substratums, AlN enables smaller package sizes and higher power densities due to its premium thermal conductivity, enabling designers to push efficiency borders without endangering reliability.
In LED lighting and laser diodes, where joint temperature directly impacts efficiency and shade security, AlN substratums significantly improve luminous outcome and operational life-span.
Its coefficient of thermal growth (CTE ≈ 4.5 ppm/K) likewise carefully matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), reducing thermo-mechanical stress and anxiety throughout thermal biking.
3.2 Electrical and Mechanical Dependability
Past thermal performance, AlN uses low dielectric loss (tan δ < 0.0005) and steady permittivity (εᵣ ≈ 8.9) across a wide frequency array, making it optimal for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature protects against dampness access, eliminating rust threats in humid environments– a crucial benefit over organic substrates.
Mechanically, AlN possesses high flexural stamina (300– 400 MPa) and firmness (HV ≈ 1200), ensuring longevity during handling, assembly, and area operation.
These qualities jointly contribute to boosted system dependability, decreased failing rates, and lower complete price of possession in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Defense Equipments
AlN ceramic substratums are currently standard in advanced power modules for industrial electric motor drives, wind and solar inverters, and onboard chargers in electrical and hybrid lorries.
In aerospace and defense, they sustain radar systems, electronic warfare devices, and satellite communications, where efficiency under severe conditions is non-negotiable.
Clinical imaging tools, including X-ray generators and MRI systems, also take advantage of AlN’s radiation resistance and signal stability.
As electrification patterns increase throughout transport and energy sectors, need for AlN substrates remains to grow, driven by the need for small, efficient, and reliable power electronic devices.
4.2 Emerging Combination and Sustainable Advancement
Future innovations focus on incorporating AlN right into three-dimensional packaging styles, embedded passive elements, and heterogeneous integration systems incorporating Si, SiC, and GaN gadgets.
Research study into nanostructured AlN movies and single-crystal substratums intends to more boost thermal conductivity toward theoretical restrictions (> 300 W/(m · K)) for next-generation quantum and optoelectronic gadgets.
Efforts to reduce production expenses through scalable powder synthesis, additive production of intricate ceramic frameworks, and recycling of scrap AlN are getting energy to enhance sustainability.
Additionally, modeling tools utilizing limited aspect evaluation (FEA) and machine learning are being used to enhance substrate style for particular thermal and electrical lots.
To conclude, light weight aluminum nitride ceramic substratums stand for a foundation innovation in modern-day electronic devices, distinctly linking the space between electrical insulation and outstanding thermal conduction.
Their function in enabling high-efficiency, high-reliability power systems underscores their calculated significance in the ongoing advancement of digital and energy modern technologies.
