1. Chemical and Structural Basics of Boron Carbide
1.1 Crystallography and Stoichiometric Variability

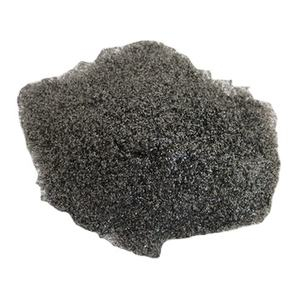

(Boron Carbide Podwer)
Boron carbide (B ₄ C) is a non-metallic ceramic compound renowned for its exceptional firmness, thermal security, and neutron absorption ability, positioning it amongst the hardest well-known materials– gone beyond just by cubic boron nitride and ruby.
Its crystal framework is based on a rhombohedral latticework made up of 12-atom icosahedra (primarily B ₁₂ or B ₁₁ C) adjoined by direct C-B-C or C-B-B chains, forming a three-dimensional covalent network that conveys extraordinary mechanical strength.
Unlike numerous porcelains with repaired stoichiometry, boron carbide displays a wide range of compositional versatility, normally varying from B FOUR C to B ₁₀. THREE C, as a result of the alternative of carbon atoms within the icosahedra and structural chains.
This irregularity affects vital residential or commercial properties such as hardness, electrical conductivity, and thermal neutron capture cross-section, allowing for home adjusting based upon synthesis problems and intended application.
The existence of intrinsic flaws and disorder in the atomic plan likewise adds to its distinct mechanical actions, including a phenomenon called “amorphization under stress” at high pressures, which can restrict performance in extreme influence scenarios.
1.2 Synthesis and Powder Morphology Control
Boron carbide powder is mainly generated via high-temperature carbothermal reduction of boron oxide (B TWO O TWO) with carbon resources such as petroleum coke or graphite in electrical arc heaters at temperature levels in between 1800 ° C and 2300 ° C.
The reaction proceeds as: B ₂ O FIVE + 7C → 2B ₄ C + 6CO, producing coarse crystalline powder that requires succeeding milling and purification to attain fine, submicron or nanoscale bits appropriate for sophisticated applications.
Different methods such as laser-assisted chemical vapor deposition (CVD), sol-gel processing, and mechanochemical synthesis offer paths to greater purity and controlled bit size circulation, though they are frequently restricted by scalability and cost.
Powder features– consisting of fragment dimension, shape, jumble state, and surface area chemistry– are essential specifications that affect sinterability, packaging thickness, and last element efficiency.
For example, nanoscale boron carbide powders display boosted sintering kinetics due to high surface power, allowing densification at lower temperature levels, yet are vulnerable to oxidation and need safety environments during handling and processing.
Surface functionalization and coating with carbon or silicon-based layers are increasingly used to improve dispersibility and hinder grain development during debt consolidation.

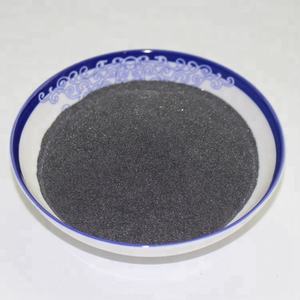

( Boron Carbide Podwer)
2. Mechanical Qualities and Ballistic Efficiency Mechanisms
2.1 Hardness, Crack Toughness, and Use Resistance
Boron carbide powder is the forerunner to one of one of the most effective light-weight armor materials readily available, owing to its Vickers solidity of roughly 30– 35 Grade point average, which enables it to wear down and blunt inbound projectiles such as bullets and shrapnel.
When sintered into thick ceramic tiles or incorporated right into composite shield systems, boron carbide outshines steel and alumina on a weight-for-weight basis, making it perfect for personnel defense, car armor, and aerospace shielding.
However, regardless of its high solidity, boron carbide has relatively reduced fracture durability (2.5– 3.5 MPa · m 1ST / TWO), rendering it vulnerable to splitting under local influence or duplicated loading.
This brittleness is exacerbated at high strain prices, where vibrant failure devices such as shear banding and stress-induced amorphization can bring about devastating loss of structural stability.
Ongoing research study focuses on microstructural design– such as presenting secondary stages (e.g., silicon carbide or carbon nanotubes), creating functionally rated compounds, or creating hierarchical designs– to reduce these restrictions.
2.2 Ballistic Energy Dissipation and Multi-Hit Ability
In personal and vehicular armor systems, boron carbide floor tiles are normally backed by fiber-reinforced polymer composites (e.g., Kevlar or UHMWPE) that soak up residual kinetic power and have fragmentation.
Upon impact, the ceramic layer fractures in a regulated fashion, dissipating energy via systems including bit fragmentation, intergranular breaking, and phase makeover.
The fine grain framework stemmed from high-purity, nanoscale boron carbide powder enhances these energy absorption procedures by increasing the thickness of grain limits that hinder crack proliferation.
Recent advancements in powder handling have resulted in the growth of boron carbide-based ceramic-metal composites (cermets) and nano-laminated structures that enhance multi-hit resistance– a crucial requirement for military and police applications.
These engineered materials keep safety performance also after first impact, addressing a key constraint of monolithic ceramic armor.
3. Neutron Absorption and Nuclear Engineering Applications
3.1 Communication with Thermal and Quick Neutrons
Past mechanical applications, boron carbide powder plays a vital function in nuclear innovation as a result of the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons).
When incorporated right into control poles, securing products, or neutron detectors, boron carbide efficiently manages fission reactions by recording neutrons and undergoing the ¹⁰ B( n, α) seven Li nuclear reaction, generating alpha bits and lithium ions that are conveniently contained.
This home makes it crucial in pressurized water activators (PWRs), boiling water activators (BWRs), and research reactors, where precise neutron flux control is essential for risk-free operation.
The powder is commonly made into pellets, coatings, or spread within steel or ceramic matrices to form composite absorbers with customized thermal and mechanical buildings.
3.2 Security Under Irradiation and Long-Term Performance
A critical advantage of boron carbide in nuclear environments is its high thermal security and radiation resistance approximately temperature levels surpassing 1000 ° C.
Nonetheless, prolonged neutron irradiation can result in helium gas buildup from the (n, α) reaction, causing swelling, microcracking, and degradation of mechanical stability– a phenomenon referred to as “helium embrittlement.”
To minimize this, researchers are creating doped boron carbide solutions (e.g., with silicon or titanium) and composite styles that suit gas launch and maintain dimensional stability over prolonged life span.
Furthermore, isotopic enrichment of ¹⁰ B enhances neutron capture effectiveness while minimizing the complete product quantity needed, boosting reactor layout flexibility.
4. Emerging and Advanced Technological Integrations
4.1 Additive Manufacturing and Functionally Graded Elements
Recent development in ceramic additive production has enabled the 3D printing of intricate boron carbide parts using strategies such as binder jetting and stereolithography.
In these procedures, great boron carbide powder is precisely bound layer by layer, adhered to by debinding and high-temperature sintering to accomplish near-full density.
This ability allows for the construction of personalized neutron protecting geometries, impact-resistant latticework frameworks, and multi-material systems where boron carbide is incorporated with steels or polymers in functionally rated designs.
Such architectures maximize efficiency by incorporating firmness, strength, and weight efficiency in a solitary element, opening brand-new frontiers in protection, aerospace, and nuclear design.
4.2 High-Temperature and Wear-Resistant Commercial Applications
Beyond protection and nuclear sectors, boron carbide powder is used in rough waterjet reducing nozzles, sandblasting linings, and wear-resistant finishes as a result of its extreme hardness and chemical inertness.
It outmatches tungsten carbide and alumina in abrasive settings, particularly when subjected to silica sand or various other hard particulates.
In metallurgy, it acts as a wear-resistant liner for receptacles, chutes, and pumps taking care of abrasive slurries.
Its reduced density (~ 2.52 g/cm SIX) more enhances its charm in mobile and weight-sensitive commercial tools.
As powder top quality enhances and processing technologies development, boron carbide is positioned to broaden right into next-generation applications including thermoelectric materials, semiconductor neutron detectors, and space-based radiation shielding.
In conclusion, boron carbide powder stands for a keystone material in extreme-environment design, integrating ultra-high hardness, neutron absorption, and thermal resilience in a solitary, versatile ceramic system.
Its function in safeguarding lives, making it possible for nuclear energy, and advancing industrial effectiveness highlights its strategic value in modern-day innovation.
With continued advancement in powder synthesis, microstructural layout, and manufacturing assimilation, boron carbide will certainly continue to be at the leading edge of innovative products growth for years ahead.
