1. Chemical Structure and Molecular System
1.1 Synthesis and Molecular Architecture

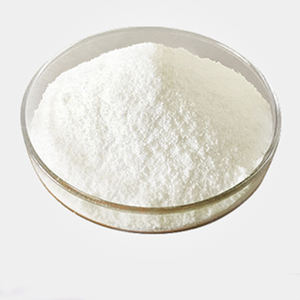

(Naphthalene Sulfonate Superplasticizer)
Naphthalene sulfonate formaldehyde condensate (NSF), frequently called naphthalene sulfonate superplasticizer, is an artificial water-reducing admixture commonly used in high-performance concrete to improve flowability without compromising architectural stability.
It is generated via a multi-step chemical process entailing the sulfonation of naphthalene with focused sulfuric acid to create naphthalene sulfonic acid, complied with by formaldehyde condensation under regulated temperature level and pH problems to create a polymer with repeating fragrant units connected by methylene bridges.
The resulting particle features a hydrophobic naphthalene foundation and several hydrophilic sulfonate (-SO FIVE ⁻) groups, developing a comb-like polyelectrolyte framework that makes it possible for strong communication with concrete fragments in aqueous settings.
This amphiphilic architecture is main to its dispersing feature, enabling the polymer to adsorb onto the surface area of cement hydrates and pass on electrostatic repulsion in between particles.
The level of sulfonation and polymerization can be changed throughout synthesis to customize the molecular weight and charge thickness, directly affecting dispersion effectiveness and compatibility with different cement types.
1.2 Diffusion Mechanism in Cementitious Equipments
When contributed to fresh concrete, NSF features mainly through electrostatic repulsion, a mechanism distinctive from steric obstacle utilized by newer polycarboxylate-based superplasticizers.
Upon blending, the hydrophobic naphthalene rings adsorb onto the positively billed websites of tricalcium silicate (C THREE S) and various other cement stages, while the adversely charged sulfonate teams extend into the pore solution, producing a strong adverse surface area potential.
This generates an electric double layer around each cement fragment, triggering them to ward off each other and neutralizing the natural propensity of fine particles to flocculate due to van der Waals forces.
Consequently, the entrapped water within flocs is launched, raising the fluidness of the mix and allowing considerable decreases in water content– usually 15– 25%– while preserving workability.
This enhanced dispersion causes a more homogeneous microstructure, reduced porosity, and enhanced mechanical strength development in time.
However, the efficiency of NSF reduces with extended mixing or heats due to desorption and slump loss, a constraint that affects its application in long-haul transport or hot climates.

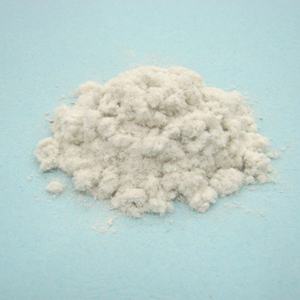

( Naphthalene Sulfonate Superplasticizer)
2. Efficiency Characteristics and Engineering Conveniences
2.1 Workability and Flow Improvement
Among the most immediate advantages of naphthalene sulfonate superplasticizer is its ability to substantially increase the slump of concrete, making it very flowable and very easy to place, pump, and combine, especially in densely reinforced frameworks.
This improved workability permits the construction of complex building kinds and decreases the requirement for mechanical vibration, minimizing labor costs and the threat of honeycombing or spaces.
NSF is especially effective in producing self-consolidating concrete (SCC) when used in combination with viscosity-modifying agents and other admixtures, making certain complete mold and mildew loading without segregation.
The level of fluidity gain depends upon dosage, typically ranging from 0.5% to 2.0% by weight of concrete, beyond which reducing returns and even retardation may occur.
Unlike some organic plasticizers, NSF does not introduce excessive air entrainment, protecting the thickness and sturdiness of the end product.
2.2 Strength and Resilience Improvements
By enabling reduced water-to-cement (w/c) ratios, NSF plays a critical function in improving both very early and long-lasting compressive and flexural stamina of concrete.
A decreased w/c ratio decreases capillary porosity, leading to a denser, much less permeable matrix that withstands the ingress of chlorides, sulfates, and wetness– essential consider avoiding support deterioration and sulfate assault.
This enhanced impermeability extends life span in aggressive atmospheres such as aquatic frameworks, bridges, and wastewater treatment facilities.
Furthermore, the consistent diffusion of concrete particles advertises even more complete hydration, increasing strength gain and lowering shrinkage cracking threats.
Studies have actually shown that concrete incorporating NSF can achieve 20– 40% higher compressive toughness at 28 days contrasted to manage mixes, relying on mix layout and treating problems.
3. Compatibility and Application Factors To Consider
3.1 Interaction with Concrete and Supplementary Products
The performance of naphthalene sulfonate superplasticizer can vary substantially relying on the structure of the cement, specifically the C FOUR A (tricalcium aluminate) content and antacid degrees.
Cements with high C THREE An often tend to adsorb more NSF because of stronger electrostatic interactions, potentially calling for higher dosages to attain the desired fluidity.
Similarly, the existence of supplementary cementitious materials (SCMs) such as fly ash, slag, or silica fume influences adsorption kinetics and rheological behavior; as an example, fly ash can compete for adsorption websites, altering the efficient dose.
Mixing NSF with various other admixtures like retarders, accelerators, or air-entraining agents requires cautious compatibility screening to stay clear of negative interactions such as rapid depression loss or flash set.
Batching series– whether NSF is added before, during, or after blending– likewise affects diffusion effectiveness and have to be standardized in massive procedures.
3.2 Environmental and Handling Variables
NSF is available in fluid and powder types, with liquid formulas supplying easier application and faster dissolution in blending water.
While typically stable under normal storage problems, prolonged exposure to freezing temperatures can cause rainfall, and high warm may weaken the polymer chains in time.
From an ecological perspective, NSF is taken into consideration low poisoning and non-corrosive, though correct handling techniques must be followed to avoid breathing of powder or skin irritation.
Its manufacturing entails petrochemical by-products and formaldehyde, elevating sustainability worries that have driven research into bio-based alternatives and greener synthesis courses.
4. Industrial Applications and Future Expectation
4.1 Usage in Precast, Ready-Mix, and High-Strength Concrete
Naphthalene sulfonate superplasticizer is thoroughly utilized in precast concrete manufacturing, where exact control over setting time, surface area finish, and dimensional accuracy is necessary.
In ready-mixed concrete, it allows long-distance transport without giving up workability upon arrival at building and construction sites.
It is also a key component in high-strength concrete (HSC) and ultra-high-performance concrete (UHPC), where extremely reduced w/c proportions are needed to attain compressive toughness exceeding 100 MPa.
Tunnel linings, high-rise buildings, and prestressed concrete components take advantage of the enhanced longevity and structural performance provided by NSF-modified blends.
4.2 Fads and Challenges in Admixture Modern Technology
Regardless of the introduction of more advanced polycarboxylate ether (PCE) superplasticizers with exceptional downturn retention and lower dosage demands, NSF continues to be extensively utilized due to its cost-effectiveness and proven performance.
Recurring research focuses on crossbreed systems combining NSF with PCEs or nanomaterials to maximize rheology and stamina advancement.
Efforts to boost biodegradability, decrease formaldehyde exhausts during manufacturing, and boost compatibility with low-carbon concretes mirror the industry’s change towards sustainable building and construction products.
In conclusion, naphthalene sulfonate superplasticizer stands for a cornerstone innovation in contemporary concrete design, linking the space between traditional techniques and advanced product performance.
Its capability to transform concrete into an extremely workable yet durable composite remains to support global infrastructure growth, also as next-generation admixtures advance.
