1. Make-up and Architectural Residences of Fused Quartz
1.1 Amorphous Network and Thermal Security

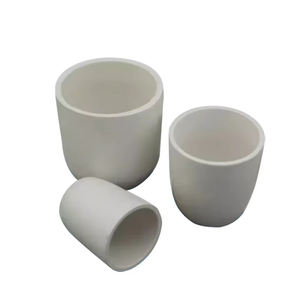

(Quartz Crucibles)
Quartz crucibles are high-temperature containers manufactured from integrated silica, an artificial type of silicon dioxide (SiO TWO) originated from the melting of all-natural quartz crystals at temperatures surpassing 1700 ° C.
Unlike crystalline quartz, merged silica has an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which conveys phenomenal thermal shock resistance and dimensional stability under quick temperature modifications.
This disordered atomic structure prevents bosom along crystallographic planes, making merged silica less prone to splitting during thermal biking contrasted to polycrystalline porcelains.
The material displays a low coefficient of thermal expansion (~ 0.5 × 10 ⁻⁶/ K), among the lowest among engineering materials, allowing it to stand up to extreme thermal slopes without fracturing– an important property in semiconductor and solar cell production.
Fused silica additionally maintains superb chemical inertness versus many acids, molten metals, and slags, although it can be gradually etched by hydrofluoric acid and warm phosphoric acid.
Its high conditioning point (~ 1600– 1730 ° C, depending upon pureness and OH web content) allows continual operation at raised temperature levels needed for crystal development and steel refining processes.
1.2 Pureness Grading and Trace Element Control
The efficiency of quartz crucibles is extremely based on chemical purity, especially the focus of metal contaminations such as iron, salt, potassium, aluminum, and titanium.
Also trace amounts (parts per million level) of these pollutants can move into liquified silicon throughout crystal development, breaking down the electrical buildings of the resulting semiconductor product.
High-purity grades utilized in electronics producing normally include over 99.95% SiO ₂, with alkali metal oxides limited to much less than 10 ppm and transition steels below 1 ppm.
Contaminations originate from raw quartz feedstock or handling devices and are minimized with careful choice of mineral sources and purification methods like acid leaching and flotation.
In addition, the hydroxyl (OH) content in merged silica influences its thermomechanical behavior; high-OH types use much better UV transmission yet reduced thermal security, while low-OH versions are liked for high-temperature applications due to minimized bubble development.

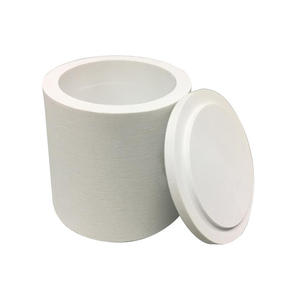

( Quartz Crucibles)
2. Production Process and Microstructural Design
2.1 Electrofusion and Creating Methods
Quartz crucibles are mostly created by means of electrofusion, a process in which high-purity quartz powder is fed right into a rotating graphite mold and mildew within an electrical arc heater.
An electrical arc generated between carbon electrodes melts the quartz particles, which solidify layer by layer to develop a smooth, dense crucible shape.
This method creates a fine-grained, uniform microstructure with marginal bubbles and striae, crucial for uniform warm circulation and mechanical honesty.
Alternative methods such as plasma combination and flame blend are used for specialized applications requiring ultra-low contamination or particular wall density accounts.
After casting, the crucibles undergo controlled air conditioning (annealing) to eliminate internal tensions and stop spontaneous cracking during solution.
Surface area completing, consisting of grinding and brightening, makes certain dimensional accuracy and decreases nucleation websites for undesirable condensation throughout usage.
2.2 Crystalline Layer Design and Opacity Control
A defining function of modern quartz crucibles, specifically those made use of in directional solidification of multicrystalline silicon, is the engineered inner layer structure.
During manufacturing, the internal surface is often dealt with to advertise the formation of a thin, regulated layer of cristobalite– a high-temperature polymorph of SiO ₂– upon very first heating.
This cristobalite layer serves as a diffusion obstacle, decreasing straight interaction between liquified silicon and the underlying merged silica, thus decreasing oxygen and metal contamination.
In addition, the visibility of this crystalline phase enhances opacity, boosting infrared radiation absorption and promoting more uniform temperature circulation within the melt.
Crucible designers meticulously balance the thickness and continuity of this layer to stay clear of spalling or fracturing due to quantity changes during stage changes.
3. Useful Efficiency in High-Temperature Applications
3.1 Role in Silicon Crystal Development Processes
Quartz crucibles are indispensable in the manufacturing of monocrystalline and multicrystalline silicon, acting as the main container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ procedure, a seed crystal is dipped into liquified silicon held in a quartz crucible and slowly pulled upwards while turning, allowing single-crystal ingots to develop.
Although the crucible does not directly contact the expanding crystal, communications between molten silicon and SiO two wall surfaces bring about oxygen dissolution right into the thaw, which can impact provider lifetime and mechanical toughness in ended up wafers.
In DS procedures for photovoltaic-grade silicon, large-scale quartz crucibles allow the regulated cooling of hundreds of kilos of liquified silicon right into block-shaped ingots.
Below, layers such as silicon nitride (Si two N ₄) are applied to the inner surface area to prevent adhesion and assist in very easy release of the strengthened silicon block after cooling down.
3.2 Degradation Mechanisms and Life Span Limitations
Despite their effectiveness, quartz crucibles weaken throughout duplicated high-temperature cycles because of a number of interrelated systems.
Viscous circulation or deformation happens at long term direct exposure over 1400 ° C, bring about wall thinning and loss of geometric honesty.
Re-crystallization of fused silica right into cristobalite produces inner tensions due to volume growth, potentially creating cracks or spallation that infect the melt.
Chemical erosion arises from decrease responses between liquified silicon and SiO TWO: SiO TWO + Si → 2SiO(g), generating unpredictable silicon monoxide that runs away and deteriorates the crucible wall.
Bubble development, driven by caught gases or OH teams, additionally jeopardizes structural toughness and thermal conductivity.
These destruction paths limit the variety of reuse cycles and require exact process control to take full advantage of crucible life-span and product return.
4. Emerging Advancements and Technological Adaptations
4.1 Coatings and Composite Alterations
To improve efficiency and toughness, advanced quartz crucibles include functional coverings and composite structures.
Silicon-based anti-sticking layers and drugged silica finishes boost release qualities and minimize oxygen outgassing throughout melting.
Some suppliers integrate zirconia (ZrO ₂) bits into the crucible wall surface to boost mechanical toughness and resistance to devitrification.
Research study is ongoing right into fully transparent or gradient-structured crucibles designed to optimize convected heat transfer in next-generation solar heater styles.
4.2 Sustainability and Recycling Obstacles
With boosting demand from the semiconductor and photovoltaic or pv sectors, sustainable use of quartz crucibles has become a priority.
Used crucibles contaminated with silicon deposit are difficult to reuse because of cross-contamination threats, resulting in substantial waste generation.
Efforts concentrate on establishing reusable crucible liners, improved cleansing procedures, and closed-loop recycling systems to recuperate high-purity silica for second applications.
As gadget efficiencies demand ever-higher material purity, the duty of quartz crucibles will continue to evolve through technology in products science and process engineering.
In summary, quartz crucibles stand for a vital user interface between raw materials and high-performance digital items.
Their unique mix of pureness, thermal strength, and structural style makes it possible for the construction of silicon-based modern technologies that power contemporary computing and renewable energy systems.
