1. Fundamental Structure and Architectural Features of Quartz Ceramics
1.1 Chemical Purity and Crystalline-to-Amorphous Shift

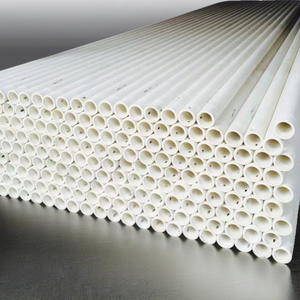

(Quartz Ceramics)
Quartz porcelains, also called fused silica or integrated quartz, are a class of high-performance not natural materials stemmed from silicon dioxide (SiO ₂) in its ultra-pure, non-crystalline (amorphous) type.
Unlike traditional porcelains that rely upon polycrystalline structures, quartz ceramics are differentiated by their total absence of grain boundaries due to their glassy, isotropic network of SiO ₄ tetrahedra adjoined in a three-dimensional arbitrary network.
This amorphous framework is attained with high-temperature melting of natural quartz crystals or synthetic silica precursors, complied with by quick cooling to stop condensation.
The resulting material contains normally over 99.9% SiO ₂, with trace impurities such as alkali metals (Na ⁺, K ⁺), aluminum, and iron maintained parts-per-million levels to protect optical clearness, electrical resistivity, and thermal performance.
The lack of long-range order gets rid of anisotropic behavior, making quartz ceramics dimensionally steady and mechanically consistent in all directions– a crucial benefit in precision applications.
1.2 Thermal Habits and Resistance to Thermal Shock
Among the most specifying attributes of quartz ceramics is their remarkably low coefficient of thermal growth (CTE), generally around 0.55 × 10 ⁻⁶/ K between 20 ° C and 300 ° C.
This near-zero growth emerges from the adaptable Si– O– Si bond angles in the amorphous network, which can readjust under thermal stress without breaking, permitting the material to hold up against fast temperature level modifications that would crack conventional ceramics or metals.
Quartz porcelains can withstand thermal shocks exceeding 1000 ° C, such as direct immersion in water after heating up to heated temperature levels, without breaking or spalling.
This residential or commercial property makes them vital in settings entailing repeated home heating and cooling cycles, such as semiconductor processing furnaces, aerospace elements, and high-intensity illumination systems.
Furthermore, quartz ceramics keep architectural integrity up to temperature levels of approximately 1100 ° C in continuous service, with temporary exposure resistance coming close to 1600 ° C in inert atmospheres.
( Quartz Ceramics)
Past thermal shock resistance, they display high softening temperature levels (~ 1600 ° C )and exceptional resistance to devitrification– though prolonged direct exposure over 1200 ° C can initiate surface formation right into cristobalite, which may compromise mechanical strength as a result of volume adjustments during stage shifts.
2. Optical, Electrical, and Chemical Qualities of Fused Silica Systems
2.1 Broadband Openness and Photonic Applications
Quartz porcelains are renowned for their outstanding optical transmission throughout a vast spooky range, extending from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This openness is allowed by the absence of impurities and the homogeneity of the amorphous network, which minimizes light scattering and absorption.
High-purity synthetic integrated silica, created using flame hydrolysis of silicon chlorides, attains even greater UV transmission and is used in essential applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The material’s high laser damages limit– standing up to breakdown under intense pulsed laser irradiation– makes it optimal for high-energy laser systems utilized in blend research study and industrial machining.
Furthermore, its low autofluorescence and radiation resistance make sure dependability in scientific instrumentation, including spectrometers, UV treating systems, and nuclear monitoring devices.
2.2 Dielectric Efficiency and Chemical Inertness
From an electric point ofview, quartz ceramics are outstanding insulators with volume resistivity going beyond 10 ¹⁸ Ω · centimeters at room temperature level and a dielectric constant of around 3.8 at 1 MHz.
Their low dielectric loss tangent (tan δ < 0.0001) makes certain marginal power dissipation in high-frequency and high-voltage applications, making them ideal for microwave home windows, radar domes, and shielding substratums in digital assemblies.
These residential properties remain steady over a broad temperature variety, unlike many polymers or traditional ceramics that break down electrically under thermal stress and anxiety.
Chemically, quartz ceramics exhibit remarkable inertness to the majority of acids, including hydrochloric, nitric, and sulfuric acids, as a result of the stability of the Si– O bond.
However, they are susceptible to strike by hydrofluoric acid (HF) and strong antacids such as warm salt hydroxide, which damage the Si– O– Si network.
This careful reactivity is made use of in microfabrication processes where regulated etching of integrated silica is called for.
In hostile commercial atmospheres– such as chemical handling, semiconductor damp benches, and high-purity fluid handling– quartz porcelains function as liners, sight glasses, and activator components where contamination have to be reduced.
3. Manufacturing Processes and Geometric Design of Quartz Porcelain Components
3.1 Thawing and Developing Techniques
The manufacturing of quartz porcelains involves a number of specialized melting techniques, each customized to particular pureness and application requirements.
Electric arc melting uses high-purity quartz sand melted in a water-cooled copper crucible under vacuum cleaner or inert gas, producing huge boules or tubes with outstanding thermal and mechanical residential properties.
Flame blend, or combustion synthesis, entails melting silicon tetrachloride (SiCl ₄) in a hydrogen-oxygen flame, transferring great silica bits that sinter into a transparent preform– this technique generates the greatest optical quality and is made use of for synthetic integrated silica.
Plasma melting offers a different path, providing ultra-high temperatures and contamination-free processing for niche aerospace and defense applications.
As soon as thawed, quartz porcelains can be formed with precision spreading, centrifugal creating (for tubes), or CNC machining of pre-sintered spaces.
Because of their brittleness, machining needs ruby tools and cautious control to prevent microcracking.
3.2 Precision Manufacture and Surface Finishing
Quartz ceramic elements are usually made into intricate geometries such as crucibles, tubes, poles, windows, and custom insulators for semiconductor, solar, and laser sectors.
Dimensional accuracy is critical, especially in semiconductor production where quartz susceptors and bell containers must maintain specific positioning and thermal uniformity.
Surface area ending up plays a crucial function in performance; polished surfaces decrease light spreading in optical parts and minimize nucleation sites for devitrification in high-temperature applications.
Etching with buffered HF options can produce controlled surface area structures or remove damaged layers after machining.
For ultra-high vacuum cleaner (UHV) systems, quartz porcelains are cleansed and baked to get rid of surface-adsorbed gases, ensuring minimal outgassing and compatibility with delicate processes like molecular light beam epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Role in Semiconductor and Photovoltaic Production
Quartz ceramics are foundational products in the fabrication of integrated circuits and solar cells, where they act as furnace tubes, wafer boats (susceptors), and diffusion chambers.
Their ability to withstand heats in oxidizing, lowering, or inert environments– integrated with low metallic contamination– guarantees process pureness and return.
During chemical vapor deposition (CVD) or thermal oxidation, quartz components keep dimensional security and resist warping, stopping wafer damage and misalignment.
In solar production, quartz crucibles are made use of to grow monocrystalline silicon ingots by means of the Czochralski process, where their pureness straight affects the electrical quality of the last solar cells.
4.2 Usage in Lights, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lights and UV sanitation systems, quartz ceramic envelopes contain plasma arcs at temperatures going beyond 1000 ° C while transmitting UV and visible light successfully.
Their thermal shock resistance stops failing during rapid light ignition and closure cycles.
In aerospace, quartz ceramics are utilized in radar home windows, sensing unit real estates, and thermal security systems because of their low dielectric consistent, high strength-to-density proportion, and security under aerothermal loading.
In logical chemistry and life scientific researches, fused silica capillaries are essential in gas chromatography (GC) and capillary electrophoresis (CE), where surface area inertness stops example adsorption and ensures precise separation.
Furthermore, quartz crystal microbalances (QCMs), which depend on the piezoelectric properties of crystalline quartz (distinctive from integrated silica), use quartz ceramics as protective housings and protecting assistances in real-time mass noticing applications.
In conclusion, quartz ceramics represent a special junction of severe thermal strength, optical transparency, and chemical purity.
Their amorphous structure and high SiO ₂ content enable efficiency in environments where traditional materials fall short, from the heart of semiconductor fabs to the edge of space.
As modern technology advances toward higher temperatures, higher accuracy, and cleaner processes, quartz ceramics will certainly continue to serve as an important enabler of development across scientific research and sector.
