1. Fundamental Structure and Polymorphism of Silicon Carbide
1.1 Crystal Chemistry and Polytypic Diversity

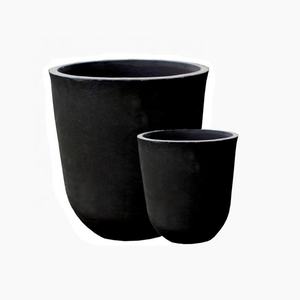

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalently bonded ceramic product composed of silicon and carbon atoms arranged in a tetrahedral coordination, forming a very stable and robust crystal latticework.
Unlike several traditional ceramics, SiC does not have a single, special crystal framework; instead, it exhibits an exceptional phenomenon known as polytypism, where the same chemical structure can crystallize right into over 250 unique polytypes, each varying in the stacking sequence of close-packed atomic layers.
One of the most highly substantial polytypes are 3C-SiC (cubic, zinc blende framework), 4H-SiC, and 6H-SiC (both hexagonal), each supplying various digital, thermal, and mechanical buildings.
3C-SiC, likewise called beta-SiC, is commonly created at lower temperatures and is metastable, while 4H and 6H polytypes, referred to as alpha-SiC, are extra thermally secure and generally made use of in high-temperature and electronic applications.
This structural diversity enables targeted material option based upon the intended application, whether it be in power electronic devices, high-speed machining, or severe thermal environments.
1.2 Bonding Features and Resulting Properties
The toughness of SiC comes from its solid covalent Si-C bonds, which are short in size and extremely directional, resulting in a rigid three-dimensional network.
This bonding configuration gives remarkable mechanical properties, consisting of high solidity (commonly 25– 30 Grade point average on the Vickers scale), outstanding flexural stamina (approximately 600 MPa for sintered kinds), and good crack toughness relative to various other ceramics.
The covalent nature also adds to SiC’s impressive thermal conductivity, which can get to 120– 490 W/m · K depending upon the polytype and pureness– similar to some metals and far surpassing most architectural porcelains.
Furthermore, SiC displays a reduced coefficient of thermal expansion, around 4.0– 5.6 × 10 ⁻⁶/ K, which, when integrated with high thermal conductivity, provides it remarkable thermal shock resistance.
This indicates SiC components can go through fast temperature modifications without cracking, an essential characteristic in applications such as heating system components, heat exchangers, and aerospace thermal security systems.
2. Synthesis and Processing Methods for Silicon Carbide Ceramics
( Silicon Carbide Ceramics)
2.1 Main Manufacturing Techniques: From Acheson to Advanced Synthesis
The commercial manufacturing of silicon carbide dates back to the late 19th century with the innovation of the Acheson procedure, a carbothermal reduction technique in which high-purity silica (SiO TWO) and carbon (normally oil coke) are warmed to temperature levels above 2200 ° C in an electric resistance heater.
While this method stays extensively used for creating rugged SiC powder for abrasives and refractories, it generates product with contaminations and irregular particle morphology, restricting its usage in high-performance ceramics.
Modern improvements have actually brought about alternative synthesis courses such as chemical vapor deposition (CVD), which generates ultra-high-purity, single-crystal SiC for semiconductor applications, and laser-assisted or plasma-enhanced synthesis for nanoscale powders.
These innovative approaches enable specific control over stoichiometry, fragment size, and phase pureness, important for customizing SiC to particular design needs.
2.2 Densification and Microstructural Control
One of the best difficulties in making SiC ceramics is achieving full densification due to its strong covalent bonding and low self-diffusion coefficients, which hinder traditional sintering.
To overcome this, numerous specific densification strategies have been created.
Response bonding entails infiltrating a permeable carbon preform with molten silicon, which responds to develop SiC sitting, causing a near-net-shape element with minimal shrinking.
Pressureless sintering is achieved by adding sintering help such as boron and carbon, which advertise grain boundary diffusion and eliminate pores.
Warm pushing and hot isostatic pressing (HIP) apply exterior pressure during home heating, enabling full densification at lower temperature levels and producing materials with exceptional mechanical properties.
These handling techniques make it possible for the manufacture of SiC parts with fine-grained, consistent microstructures, critical for making the most of stamina, use resistance, and reliability.
3. Functional Efficiency and Multifunctional Applications
3.1 Thermal and Mechanical Resilience in Harsh Settings
Silicon carbide ceramics are distinctively suited for operation in extreme problems because of their capability to preserve structural honesty at heats, stand up to oxidation, and stand up to mechanical wear.
In oxidizing environments, SiC forms a protective silica (SiO TWO) layer on its surface area, which slows down additional oxidation and allows continuous usage at temperature levels up to 1600 ° C.
This oxidation resistance, incorporated with high creep resistance, makes SiC perfect for elements in gas generators, burning chambers, and high-efficiency warm exchangers.
Its remarkable solidity and abrasion resistance are made use of in industrial applications such as slurry pump elements, sandblasting nozzles, and reducing tools, where steel choices would rapidly break down.
In addition, SiC’s low thermal expansion and high thermal conductivity make it a favored material for mirrors in space telescopes and laser systems, where dimensional security under thermal biking is extremely important.
3.2 Electric and Semiconductor Applications
Beyond its structural energy, silicon carbide plays a transformative role in the area of power electronics.
4H-SiC, specifically, possesses a broad bandgap of about 3.2 eV, making it possible for devices to operate at greater voltages, temperature levels, and switching frequencies than traditional silicon-based semiconductors.
This results in power gadgets– such as Schottky diodes, MOSFETs, and JFETs– with significantly reduced energy losses, smaller sized dimension, and boosted effectiveness, which are currently commonly made use of in electric automobiles, renewable resource inverters, and smart grid systems.
The high breakdown electric area of SiC (about 10 times that of silicon) permits thinner drift layers, reducing on-resistance and enhancing gadget efficiency.
Furthermore, SiC’s high thermal conductivity helps dissipate warm efficiently, decreasing the demand for large cooling systems and enabling more small, trusted electronic components.
4. Emerging Frontiers and Future Outlook in Silicon Carbide Innovation
4.1 Assimilation in Advanced Energy and Aerospace Systems
The recurring transition to clean energy and electrified transport is driving unmatched need for SiC-based parts.
In solar inverters, wind power converters, and battery administration systems, SiC gadgets contribute to higher power conversion efficiency, straight decreasing carbon exhausts and functional expenses.
In aerospace, SiC fiber-reinforced SiC matrix compounds (SiC/SiC CMCs) are being established for generator blades, combustor liners, and thermal defense systems, providing weight savings and efficiency gains over nickel-based superalloys.
These ceramic matrix composites can run at temperatures going beyond 1200 ° C, making it possible for next-generation jet engines with greater thrust-to-weight ratios and enhanced gas efficiency.
4.2 Nanotechnology and Quantum Applications
At the nanoscale, silicon carbide displays special quantum buildings that are being explored for next-generation modern technologies.
Certain polytypes of SiC host silicon openings and divacancies that serve as spin-active flaws, operating as quantum little bits (qubits) for quantum computing and quantum picking up applications.
These flaws can be optically booted up, adjusted, and read out at area temperature, a significant benefit over numerous various other quantum platforms that call for cryogenic problems.
Furthermore, SiC nanowires and nanoparticles are being investigated for use in area discharge devices, photocatalysis, and biomedical imaging as a result of their high aspect ratio, chemical stability, and tunable electronic homes.
As study progresses, the combination of SiC right into hybrid quantum systems and nanoelectromechanical gadgets (NEMS) guarantees to expand its role beyond traditional design domain names.
4.3 Sustainability and Lifecycle Considerations
The production of SiC is energy-intensive, especially in high-temperature synthesis and sintering procedures.
However, the long-term advantages of SiC components– such as extensive life span, reduced upkeep, and enhanced system effectiveness– frequently surpass the first environmental impact.
Efforts are underway to create more sustainable production routes, consisting of microwave-assisted sintering, additive manufacturing (3D printing) of SiC, and recycling of SiC waste from semiconductor wafer processing.
These innovations aim to reduce energy consumption, minimize product waste, and support the circular economy in innovative materials industries.
Finally, silicon carbide porcelains stand for a keystone of contemporary materials science, connecting the void in between structural durability and functional flexibility.
From enabling cleaner energy systems to powering quantum modern technologies, SiC remains to redefine the limits of what is feasible in engineering and scientific research.
As processing methods evolve and new applications emerge, the future of silicon carbide remains incredibly intense.
