1. Architectural Features and Synthesis of Round Silica
1.1 Morphological Interpretation and Crystallinity

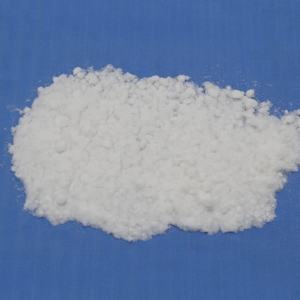

(Spherical Silica)
Spherical silica refers to silicon dioxide (SiO TWO) particles crafted with a highly uniform, near-perfect spherical form, differentiating them from traditional uneven or angular silica powders originated from natural resources.
These fragments can be amorphous or crystalline, though the amorphous kind dominates industrial applications as a result of its premium chemical stability, reduced sintering temperature, and lack of phase transitions that can induce microcracking.
The spherical morphology is not naturally prevalent; it should be artificially achieved with managed procedures that regulate nucleation, growth, and surface area power reduction.
Unlike crushed quartz or fused silica, which show rugged edges and broad dimension distributions, round silica attributes smooth surface areas, high packing density, and isotropic behavior under mechanical anxiety, making it excellent for accuracy applications.
The particle size commonly ranges from 10s of nanometers to several micrometers, with limited control over size circulation enabling foreseeable performance in composite systems.
1.2 Regulated Synthesis Pathways
The primary technique for creating spherical silica is the Sțber process, a sol-gel method developed in the 1960s that involves the hydrolysis and condensation of silicon alkoxidesРmost typically tetraethyl orthosilicate (TEOS)Рin an alcoholic remedy with ammonia as a catalyst.
By adjusting specifications such as reactant focus, water-to-alkoxide ratio, pH, temperature level, and reaction time, scientists can precisely tune fragment dimension, monodispersity, and surface chemistry.
This technique yields extremely uniform, non-agglomerated spheres with excellent batch-to-batch reproducibility, crucial for state-of-the-art production.
Alternate methods include fire spheroidization, where uneven silica particles are thawed and reshaped right into rounds using high-temperature plasma or fire therapy, and emulsion-based techniques that allow encapsulation or core-shell structuring.
For massive commercial production, salt silicate-based precipitation courses are also utilized, offering affordable scalability while keeping appropriate sphericity and pureness.
Surface functionalization during or after synthesis– such as implanting with silanes– can introduce organic groups (e.g., amino, epoxy, or vinyl) to improve compatibility with polymer matrices or allow bioconjugation.
( Spherical Silica)
2. Practical Residences and Efficiency Advantages
2.1 Flowability, Packing Thickness, and Rheological Habits
Among the most considerable advantages of round silica is its premium flowability compared to angular equivalents, a property important in powder handling, injection molding, and additive production.
The absence of sharp sides lowers interparticle friction, enabling thick, uniform packing with minimal void room, which enhances the mechanical stability and thermal conductivity of final composites.
In electronic packaging, high packing thickness straight translates to reduce resin content in encapsulants, enhancing thermal stability and minimizing coefficient of thermal expansion (CTE).
In addition, spherical fragments impart desirable rheological properties to suspensions and pastes, decreasing viscosity and stopping shear enlarging, which guarantees smooth dispensing and consistent covering in semiconductor construction.
This regulated circulation habits is crucial in applications such as flip-chip underfill, where accurate material positioning and void-free filling are needed.
2.2 Mechanical and Thermal Stability
Spherical silica exhibits outstanding mechanical strength and flexible modulus, adding to the support of polymer matrices without causing stress concentration at sharp corners.
When integrated into epoxy resins or silicones, it enhances firmness, wear resistance, and dimensional security under thermal cycling.
Its reduced thermal growth coefficient (~ 0.5 × 10 â»â¶/ K) closely matches that of silicon wafers and printed circuit card, minimizing thermal inequality tensions in microelectronic tools.
Additionally, spherical silica maintains structural stability at raised temperature levels (approximately ~ 1000 ° C in inert atmospheres), making it appropriate for high-reliability applications in aerospace and automotive electronic devices.
The mix of thermal security and electrical insulation even more enhances its utility in power modules and LED product packaging.
3. Applications in Electronics and Semiconductor Market
3.1 Function in Electronic Packaging and Encapsulation
Spherical silica is a foundation material in the semiconductor market, mostly utilized as a filler in epoxy molding substances (EMCs) for chip encapsulation.
Replacing typical irregular fillers with round ones has actually revolutionized packaging innovation by enabling greater filler loading (> 80 wt%), improved mold and mildew flow, and minimized wire move throughout transfer molding.
This advancement sustains the miniaturization of incorporated circuits and the advancement of sophisticated bundles such as system-in-package (SiP) and fan-out wafer-level packaging (FOWLP).
The smooth surface area of round particles likewise reduces abrasion of fine gold or copper bonding cables, enhancing tool integrity and yield.
In addition, their isotropic nature ensures consistent anxiety circulation, minimizing the risk of delamination and splitting throughout thermal cycling.
3.2 Use in Polishing and Planarization Procedures
In chemical mechanical planarization (CMP), spherical silica nanoparticles work as abrasive agents in slurries made to brighten silicon wafers, optical lenses, and magnetic storage media.
Their uniform shapes and size ensure consistent product removal prices and minimal surface problems such as scratches or pits.
Surface-modified round silica can be customized for specific pH atmospheres and sensitivity, boosting selectivity in between different materials on a wafer surface area.
This accuracy enables the manufacture of multilayered semiconductor structures with nanometer-scale flatness, a prerequisite for innovative lithography and gadget integration.
4. Arising and Cross-Disciplinary Applications
4.1 Biomedical and Diagnostic Uses
Past electronic devices, spherical silica nanoparticles are significantly employed in biomedicine due to their biocompatibility, simplicity of functionalization, and tunable porosity.
They act as medicine shipment providers, where healing agents are filled into mesoporous frameworks and launched in feedback to stimulations such as pH or enzymes.
In diagnostics, fluorescently classified silica balls act as stable, non-toxic probes for imaging and biosensing, outmatching quantum dots in certain biological settings.
Their surface can be conjugated with antibodies, peptides, or DNA for targeted detection of virus or cancer biomarkers.
4.2 Additive Production and Compound Materials
In 3D printing, specifically in binder jetting and stereolithography, spherical silica powders enhance powder bed thickness and layer uniformity, resulting in higher resolution and mechanical toughness in published ceramics.
As a reinforcing phase in metal matrix and polymer matrix compounds, it enhances stiffness, thermal monitoring, and wear resistance without compromising processability.
Study is additionally discovering crossbreed particles– core-shell frameworks with silica shells over magnetic or plasmonic cores– for multifunctional materials in sensing and energy storage space.
Finally, spherical silica exhibits just how morphological control at the mini- and nanoscale can change an usual product right into a high-performance enabler throughout diverse innovations.
From guarding integrated circuits to advancing clinical diagnostics, its unique mix of physical, chemical, and rheological residential or commercial properties remains to drive development in scientific research and design.
