1. Intro to Oil Immersed Transformers
In the elaborate internet of our modern-day electrical grid, transformers play a crucial role, calmly stepping voltage up and down to guarantee electricity can be sent effectively over fars away and distributed safely to our homes and markets. Amongst the various types available, the oil submersed transformer stands as a testament to proven dependability and durability. For decades, these workhorses have actually developed the backbone of power systems worldwide.
An oil immersed transformer is a sort of electrical transformer that uses a specific shielding oil as both a coolant and an insulating tool. This design is mainly used for tool to high-power applications, making it a keystone of electrical framework. This overview delves deep into the world of oil immersed power transformers and oil immersed circulation transformers, exploring their modern technology, applications, and their developing duty in an era of digitalization and renewable resource.
1.1 What is an Oil Submersed Transformer?
At its core, an oil immersed transformer contains a magnetic core and copper or light weight aluminum windings housed inside a secured tank full of protecting oil. The primary function of the oil is twofold:
1. Insulation: The oil possesses high dielectric strength, successfully protecting the high-voltage windings from the transformer’s core and grounded container. This stops brief circuits and electrical malfunctions.
2. Cooling: As the transformer operates, the windings produce significant warmth because of I ² R losses. The circulating oil absorbs this warmth, convects it to the transformer’s storage tank walls, and dissipates it into the bordering air. Bigger devices often feature radiators or fins to enhance the area for more reliable air conditioning.
This dual-purpose use of oil makes the oil submersed transformer extremely effective and robust, capable of handling high tons and standing up to short-term overloads much better than numerous dry-type alternatives.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these units are oil submersed transformers, they offer distinct features within the power system network. Understanding the distinction is crucial.
An oil immersed power transformer is a heavyweight, normally utilized in transmission networks at producing terminals and major substations. Their key duty is to “step-up” the voltage generated at the nuclear power plant to very high levels (e.g., 138 kV, 230 kV, 500 kV and above) for efficient long-distance transmission, and to “step-down” the voltage at receiving substations for additional distribution. They are identified by their very high power ratings (frequently exceeding 100 MVA), intricate construction, and on-load tap changers for voltage policy.
An oil involved circulation transformer, on the other hand, carries out the last action in the power distribution chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and steps it down to the low voltages (e.g., 400/230 V) made use of by commercial and household consumers. You frequently find them on utility posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have lower power ratings (commonly as much as 2,500 kVA), and are created for maximum efficiency at lower, more constant tons.

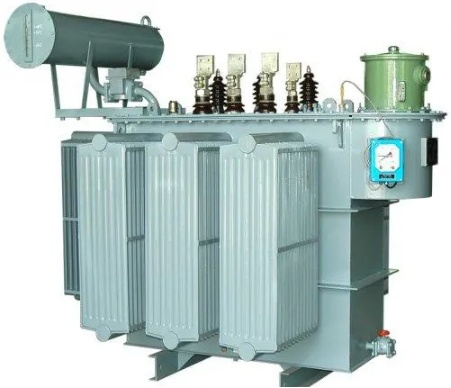

(Oil immersed power transformer)
2. Key Advantages of Oil Immersed Transformers
The enduring appeal of the oil submersed transformer is not unintentional. It uses a suite of compelling advantages that make it the preferred option for several demanding applications.
2.1 Superior Cooling and Overload Ability
The remarkable thermal capacity of oil contrasted to air enables an oil submersed power transformer to manage and dissipate warmth much more successfully. This equates to a higher overload capacity. During periods of top power need, an oil submersed transformer can take care of short-term overloads without suffering damage, an essential function for keeping grid stability. The oil’s circulation makes sure also warmth circulation, preventing local locations that can deteriorate insulation in time.
2.2 Improved Insulation and Long Service Life
The mix of top notch mineral oil and diligently impregnated paper insulation produces a dielectric system of extraordinary stamina. This durable insulation system secures the transformer from voltage rises and transients, contributing to an operational life-span that can encompass 30-40 years or more with proper maintenance. The secured container likewise shields the internal parts from moisture, dust, and various other climatic impurities.
2.3 High Performance and Cost-Effectiveness
For high-power applications, the oil submersed transformer is often one of the most cost-effective option. The materials used– mineral oil, steel storage tank, and copper/aluminum windings– supply a desirable balance of efficiency and price. The high effectiveness of these transformers, particularly at their rated lots, causes reduced energy losses over their life time, causing considerable price savings for energy firms and big industrial users.
3. Warm Topics and Future Trends
The world of oil immersed transformers is not fixed. It is continually developing to satisfy new obstacles and incorporate with modern innovations.
3.1 Eco-friendly and Fire-Resistant Oils
Environmental and safety worries are driving a considerable shift far from standard mineral oil. The market is rapidly embracing oil submersed transformers loaded with naturally degradable esters (artificial or all-natural). These oils offer a higher fire factor (making them K-class fireproof), are much less toxic, and are conveniently biodegradable, significantly minimizing the environmental influence in instance of a leakage. This pattern is making oil submersed circulation transformers more secure for installation in city areas and environmentally sensitive places.
3.2 Assimilation with Smart Grids and IoT
The modern-day oil involved power transformer is coming to be a smart node in the clever grid. Sensing units are being integrated to keep an eye on crucial specifications in real-time, including:
Dissolved Gas Evaluation (DGA): Finding mistake gases created within the oil to predict incipient mistakes.
Temperature Surveillance: Tracking top-oil and hotspot temperatures.
Load and Power Quality Surveillance.
This information, transmitted by means of IoT (Internet of Things) platforms, enables predictive maintenance, stops unplanned outages, and optimizes transformer application and lifespan.
3.3 Sustaining the Renewable Resource Shift
The international promote renewables is creating new need for oil immersed transformers. Large solar ranches and wind power installations require robust oil submersed power transformers to step up the generated voltage to transmission degrees. Moreover, the intermittent nature of renewables locations higher stress on grid parts, and the tried and tested integrity and overload capability of oil submersed transformers make them excellent for this important role.
4. Option and Upkeep Ideal Practices
Picking the right transformer and keeping it appropriately is essential to a reputable power system.
4.1 Just how to Pick the Right Oil Immersed Transformer
Choosing in between an oil submersed power transformer and an oil immersed distribution transformer relies on the application. Key considerations consist of:
1. Voltage Degree and kVA Rating: Suit the transformer’s requirements to your system’s demands.
2. Application: Transmission substation, plant, or business distribution.
3. Area: Indoor vs. exterior, environmental conditions, and fire safety guidelines (which may influence the selection of protecting oil).
4. Efficiency Criteria: Follow regional performance criteria like DOE (USA) or EU CoC (Europe).
5. Budget: Think about both the first funding price and the overall price of ownership, consisting of losses.

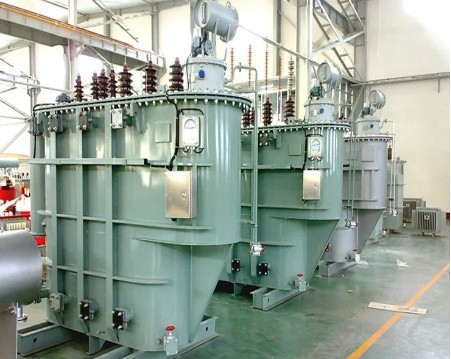

(Oil immersed distribution transformer)
4.2 Crucial Upkeep for Long Life
Positive maintenance is essential for any type of oil submersed transformer. A thorough program needs to include:
1. Normal Oil Tasting and Screening: Regular DGA and testing of dielectric toughness and dampness content are the most reliable means to assess the health and wellness of the transformer.
2. Bushing and Insulation Examination: Visual look for cracks, contamination, or leaks.
3. Tap Changer Maintenance: Normal examination and maintenance of on-load or off-load faucet changers.
4. Keep it Clean and Dry: Making certain the tank outside, radiators, and rests are tidy and functional.
The oil submersed transformer, in its roles as both a high-capacity oil submersed power transformer and an ubiquitous oil immersed circulation transformer, continues to be an irreplaceable element of our international power facilities. Its tested design, paired with ongoing developments in protecting liquids and digital surveillance, guarantees it will certainly continue to be a trustworthy, effective, and smart solution for powering our globe for decades to come. As we build the grids of the future, integrating even more renewables and electronic knowledge, the robust and versatile oil submersed transformer will unquestionably be at the heart of it.
